SKU: UCFE215-47-SNR

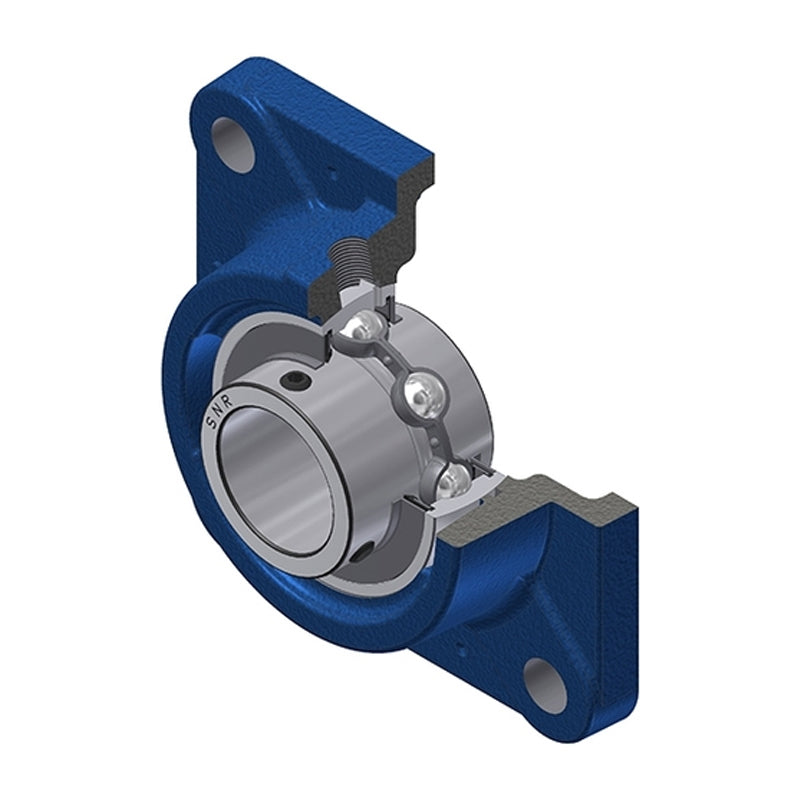

SNR UCFE215-47 Imperial Four Bolt Square Cast Iron Flange Housing with 2-15/16 inch Bore Insert - Allow 2-3 Days
SNR UCFE215-47 Imperial Four Bolt Square Cast Iron Flange Housing with 2-15/16 inch Bore Insert - Allow 2-3 Days
Regular price
Rs. 18,870.26
ex VAT
Regular price
Sale price
Rs. 18,870.26
ex VAT
Allow 2-3 Days
In stock
Price Break
5+
Rs. 18,681.56
10+
Rs. 17,926.75
20+
Rs. 17,549.34
50+
Rs. 16,983.23
100+
Rs. 16,605.83
500+
Rs. 15,662.32
1000+
Rs. 13,209.18
Couldn't load pickup availability
Share this product
Description
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
- Style:
- UCFE
- Bolt Hole Centres:
- 153mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2-15/16 inch |
| A | 59mm |
| A1 | 20mm |
| A2 | 85.8mm |
| B | 77.8mm |
| e | 41.3mm |
| J | 153mm |
| L | 197mm |
| N | 23mm |
| S | 33.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 66 kN |
| Static load C0 | 49.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 27.1 Nm |
| Mass | 6.35 kg |
