SKU: UCFE213N-SNR

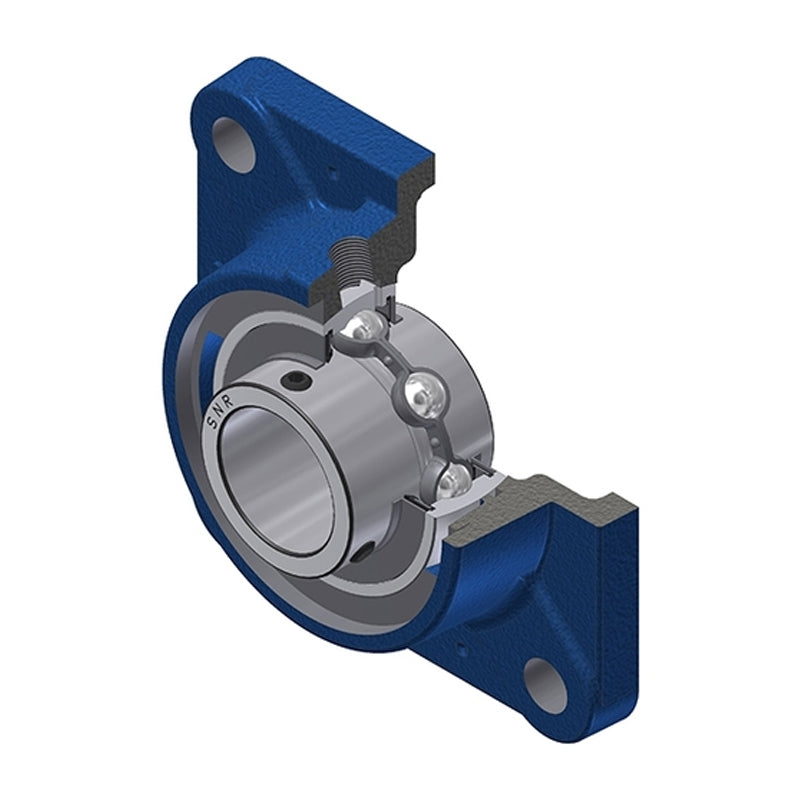

SNR UCFE213N Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days
SNR UCFE213N Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 11,928.79
Regular price
Sale price
Rs. 11,928.79
Taxes included.
In stock
Price Break
10+
Rs. 10,616.62
19+
Rs. 10,020.18
29+
Rs. 9,900.90
39+
Rs. 9,781.61
49+
Rs. 9,662.32
74+
Rs. 9,543.03
99+
Rs. 8,946.59
199+
Rs. 8,827.30
249+
Rs. 8,708.02
499+
Rs. 8,588.73
999+
Rs. 8,350.15
Description
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCFE
- Bolt Hole Centres:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 65mm |
| A | 56mm |
| A1 | 18mm |
| A2 | 77.7mm |
| B | 65.1mm |
| e | 38mm |
| J | 150mm |
| L | 188mm |
| N | 18mm |
| S | 25.4mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 57.2 kN |
| Static load C0 | 40 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 6.3 kg |
