SKU: UCFE206N-SNR

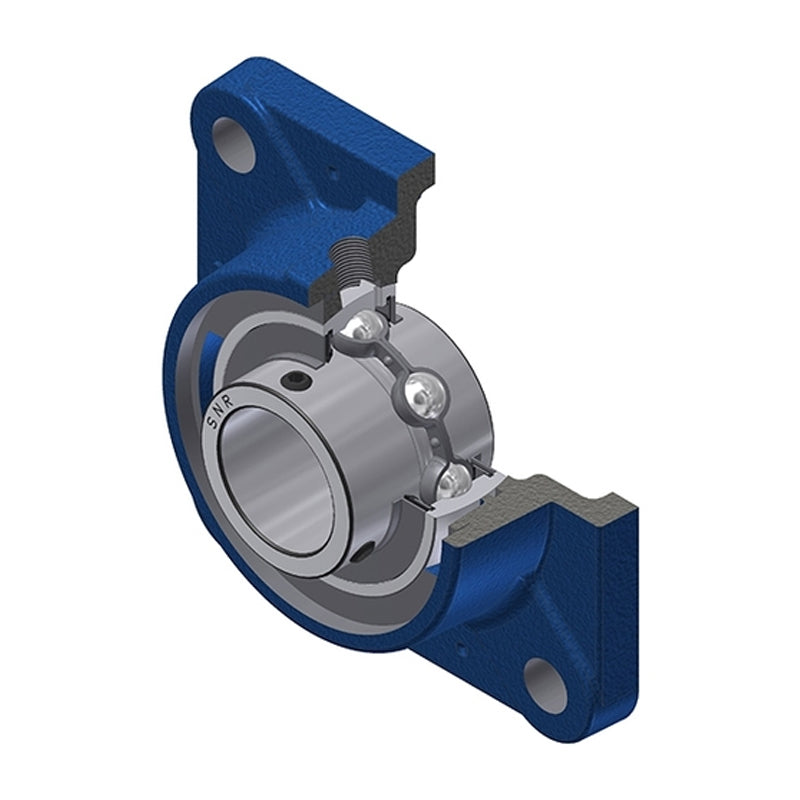

SNR UCFE206N Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
SNR UCFE206N Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 5,429.28
Regular price
Sale price
Rs. 5,429.28
Taxes included.
In stock
Price Break
10+
Rs. 4,832.06
19+
Rs. 4,560.60
29+
Rs. 4,506.30
39+
Rs. 4,452.01
49+
Rs. 4,397.72
74+
Rs. 4,343.42
99+
Rs. 4,071.96
199+
Rs. 4,017.67
249+
Rs. 3,963.37
499+
Rs. 3,909.08
999+
Rs. 3,800.50
Description
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCFE
- Bolt Hole Centres:
- 82.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 30mm |
| A | 33.5mm |
| A1 | 12mm |
| A2 | 42.2mm |
| B | 38.1mm |
| e | 20mm |
| J | 82.5mm |
| L | 108mm |
| N | 11.5mm |
| S | 15.9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 1.14 kg |
