SKU: UCFE206-19N-SNR

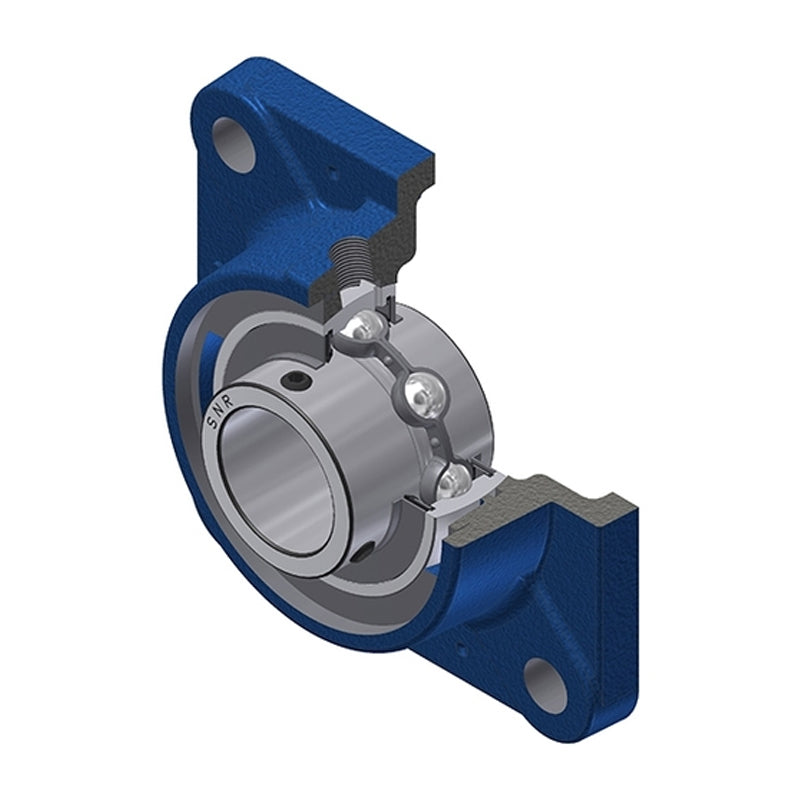

SNR UCFE206-19N Imperial Four Bolt Square Cast Iron Flange Housing with 1-3/16 inch Bore Insert - Allow 2-3 Days
SNR UCFE206-19N Imperial Four Bolt Square Cast Iron Flange Housing with 1-3/16 inch Bore Insert - Allow 2-3 Days
Regular price
Rs. 7,090.96
Regular price
Sale price
Rs. 7,090.96
Taxes included.
In stock
Price Break
5+
Rs. 7,020.05
10+
Rs. 6,736.41
20+
Rs. 6,594.59
50+
Rs. 6,381.86
100+
Rs. 6,240.04
500+
Rs. 5,885.50
1000+
Rs. 4,963.67
Description
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- UCFE
- Bolt Hole Centres:
- 82.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-3/16 inch |
| A | 33.5mm |
| A1 | 12mm |
| A2 | 42.2mm |
| B | 38.1mm |
| e | 20mm |
| J | 82.5mm |
| L | 108mm |
| N | 11.5mm |
| S | 15.9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.7 Nm |
| Mass | 1.13 kg |
