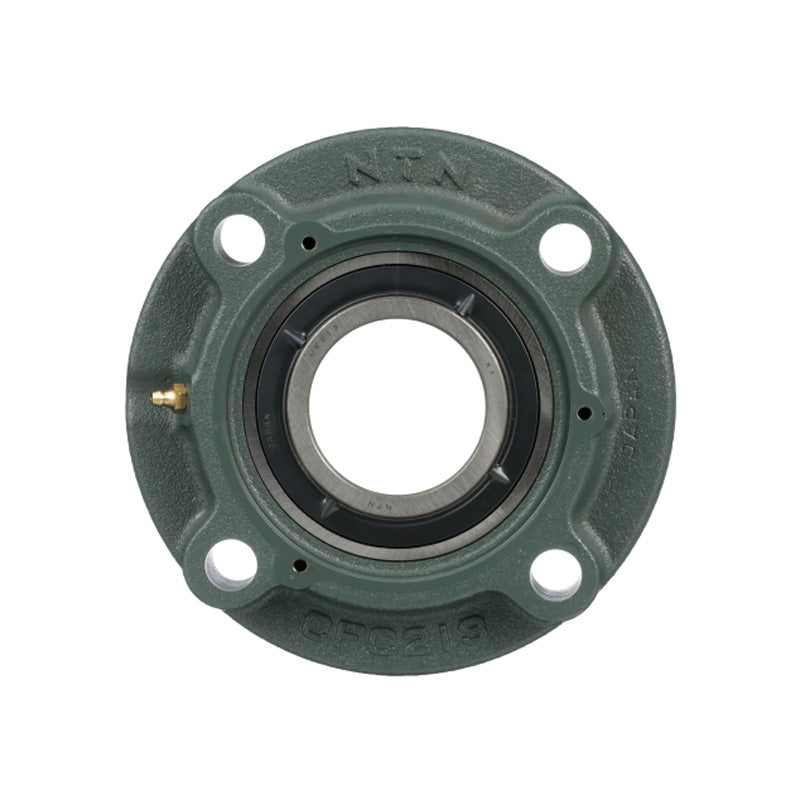

NTN UCFCX20D1 Metric Four Bolt Cast Iron Round Flanged Housing with 100mm Insert - Allow 2-3 Days
NTN UCFCX20D1 Metric Four Bolt Cast Iron Round Flanged Housing with 100mm Insert - Allow 2-3 Days
Regular price
Rs. 47,450.16
Regular price
Sale price
Rs. 47,450.16
Taxes included.
In stock
Price Break
10+
Rs. 42,230.64
19+
Rs. 39,858.13
29+
Rs. 39,383.63
39+
Rs. 38,909.13
49+
Rs. 38,434.63
74+
Rs. 37,960.13
99+
Rs. 35,587.62
199+
Rs. 35,113.12
249+
Rs. 34,638.62
499+
Rs. 34,164.12
999+
Rs. 33,215.11
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 168.3mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 100mm |
| L | 276mm |
| J | 238mm |
| (J<sub>1</sub>) | 168.3mm |
| A<sub>2</sub> | 22mm |
| N | 23mm |
| A<sub>3</sub> | 28mm |
| A<sub>1</sub> | 66mm |
| A | 94mm |
| H<sub>3</sub> | 206mm |
| A<sub>0</sub> | 118.3mm |
| B | 117.5mm |
| S | 49.2mm |
| F (Min.) | 139mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 147 kN |
| Static load C<sub>0r</sub> | 105 kN |
| Fatigue load limit C<sub>u</sub> | 6.75 kN |
| --- | Unit information |
| Mass | 18 kg |
