SKU: UCFCX18D1-NTN

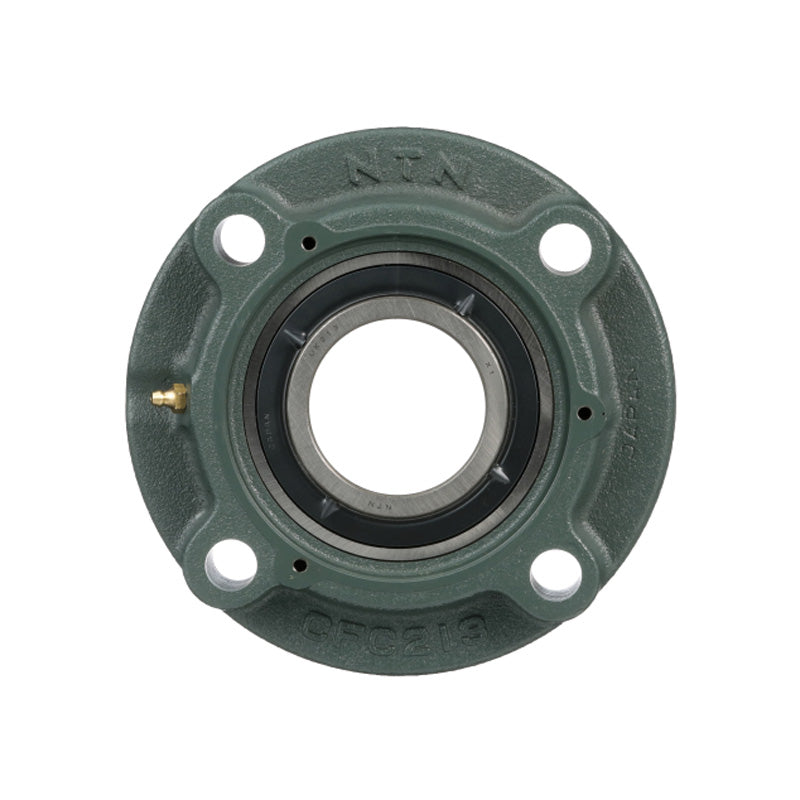

NTN UCFCX18D1 Metric Four Bolt Cast Iron Round Flanged Housing with 90mm Insert - Allow 2-3 Days
NTN UCFCX18D1 Metric Four Bolt Cast Iron Round Flanged Housing with 90mm Insert - Allow 2-3 Days
Regular price
Rs. 30,510.71
Regular price
Sale price
Rs. 30,510.71
Taxes included.
In stock
Price Break
10+
Rs. 27,154.53
19+
Rs. 25,629.00
29+
Rs. 25,323.89
39+
Rs. 25,018.78
49+
Rs. 24,713.68
74+
Rs. 24,408.57
99+
Rs. 22,883.03
199+
Rs. 22,577.93
249+
Rs. 22,272.82
499+
Rs. 21,967.71
999+
Rs. 21,357.50
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 154.9mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 90mm |
| L | 260mm |
| J | 219mm |
| (J<sub>1</sub>) | 154.9mm |
| A<sub>2</sub> | 12mm |
| N | 23mm |
| A<sub>3</sub> | 28mm |
| A<sub>1</sub> | 43mm |
| A | 71mm |
| H<sub>3</sub> | 186mm |
| A<sub>0</sub> | 101.1mm |
| B | 104mm |
| S | 42.9mm |
| F (Min.) | 126mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 121 kN |
| Static load C<sub>0r</sub> | 82 kN |
| Fatigue load limit C<sub>u</sub> | 5.55 kN |
| --- | Unit information |
| Mass | 12 kg |
