SKU: UCFCX13D1-NTN

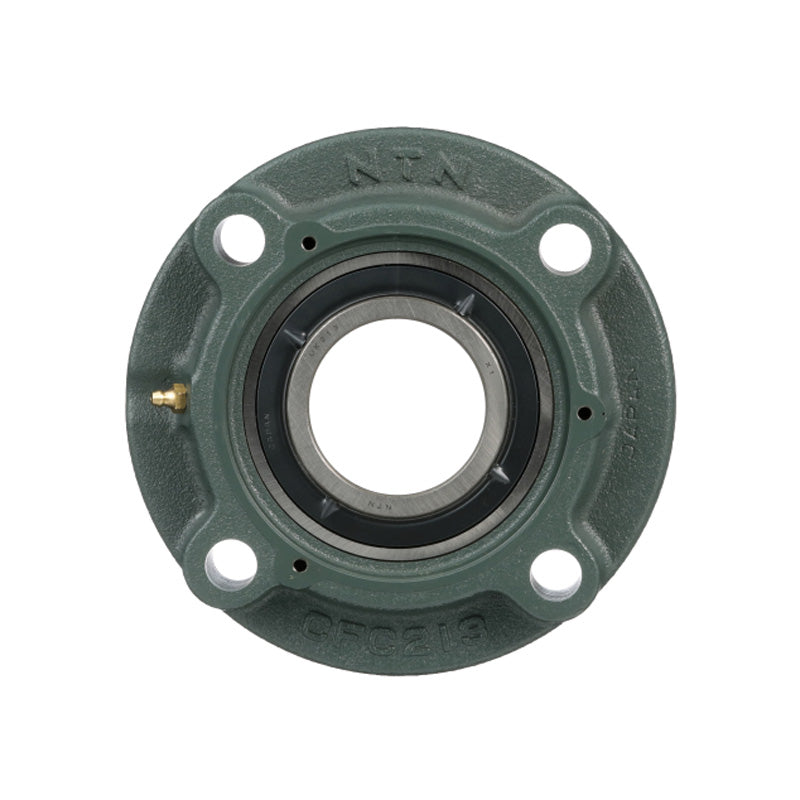

NTN UCFCX13D1 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert - Allow 2-3 Days
NTN UCFCX13D1 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert - Allow 2-3 Days
Regular price
Rs. 12,922.21
Regular price
Sale price
Rs. 12,922.21
Taxes included.
In stock
Price Break
10+
Rs. 11,500.77
19+
Rs. 10,854.66
29+
Rs. 10,725.43
39+
Rs. 10,596.21
49+
Rs. 10,466.99
74+
Rs. 10,337.77
99+
Rs. 9,691.66
199+
Rs. 9,562.44
249+
Rs. 9,433.21
499+
Rs. 9,303.99
999+
Rs. 9,045.55
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 116.7mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 65mm |
| L | 194mm |
| J | 165mm |
| (J<sub>1</sub>) | 116.7mm |
| A<sub>2</sub> | 11mm |
| N | 16mm |
| A<sub>3</sub> | 20mm |
| A<sub>1</sub> | 33mm |
| A | 53mm |
| H<sub>3</sub> | 140mm |
| A<sub>0</sub> | 75.4mm |
| B | 74.6mm |
| S | 30.2mm |
| F (Min.) | 94mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 69 kN |
| Static load C<sub>0r</sub> | 44 kN |
| Fatigue load limit C<sub>u</sub> | 3.45 kN |
| --- | Unit information |
| Mass | 5.7 kg |
