SKU: UCFCX12D1-NTN

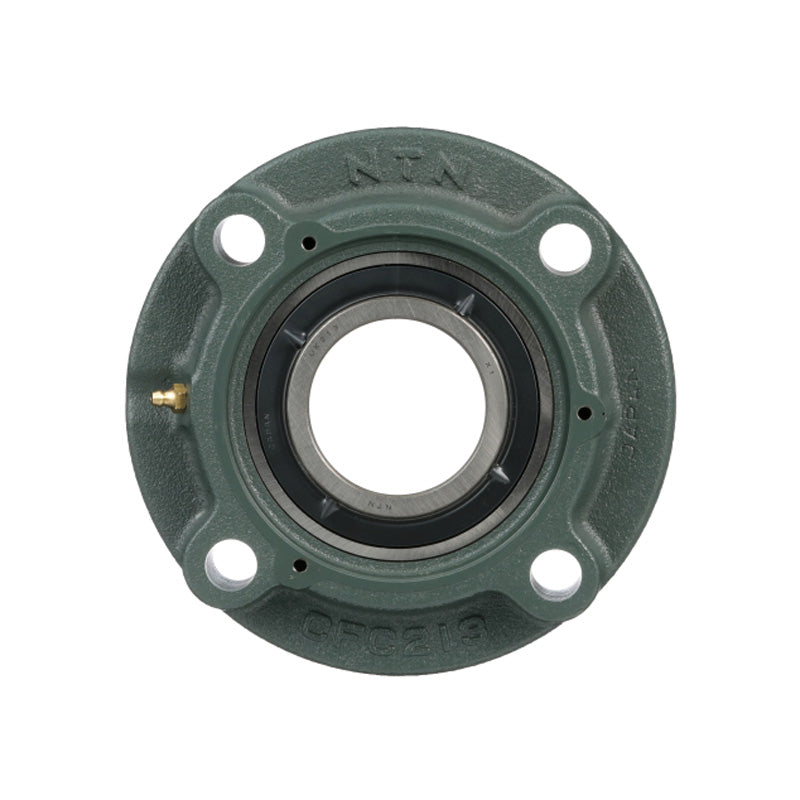

NTN UCFCX12D1 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days
NTN UCFCX12D1 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days
Regular price
Rs. 11,227.25
Regular price
Sale price
Rs. 11,227.25
Taxes included.
In stock
Price Break
10+
Rs. 9,992.25
19+
Rs. 9,430.89
29+
Rs. 9,318.62
39+
Rs. 9,206.35
49+
Rs. 9,094.07
74+
Rs. 8,981.80
99+
Rs. 8,420.44
199+
Rs. 8,308.17
249+
Rs. 8,195.89
499+
Rs. 8,083.62
999+
Rs. 7,859.08
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 116.7mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| L | 194mm |
| J | 165mm |
| (J<sub>1</sub>) | 116.7mm |
| A<sub>2</sub> | 11mm |
| N | 16mm |
| A<sub>3</sub> | 20mm |
| A<sub>1</sub> | 33mm |
| A | 53mm |
| H<sub>3</sub> | 140mm |
| A<sub>0</sub> | 70.7mm |
| B | 65.1mm |
| S | 25.4mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 63.5 kN |
| Static load C<sub>0r</sub> | 40 kN |
| Fatigue load limit C<sub>u</sub> | 3.15 kN |
| --- | Unit information |
| Mass | 5.5 kg |
