SKU: UCFCX11D1-NTN

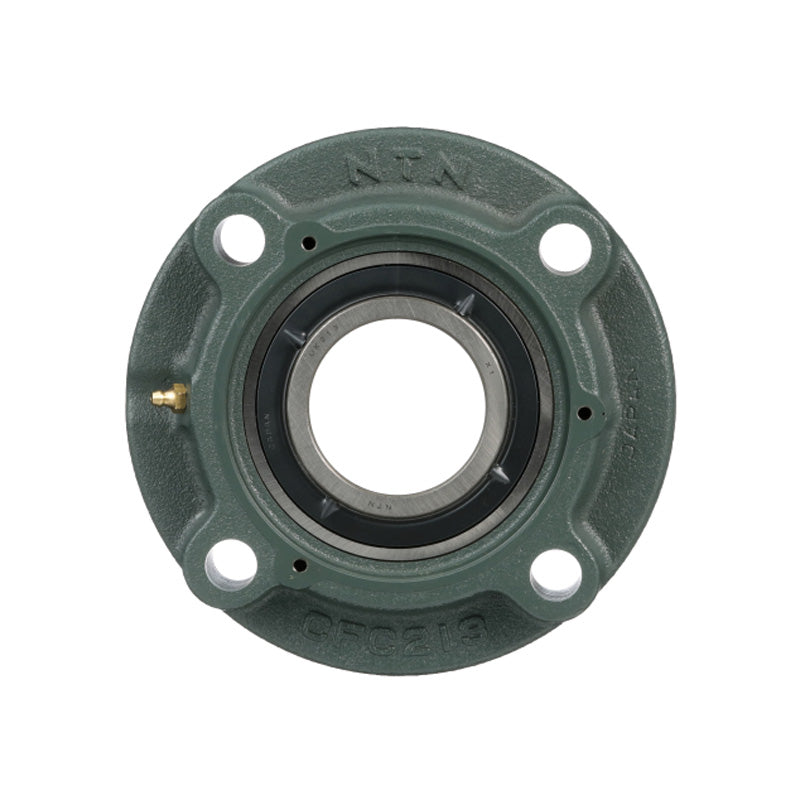

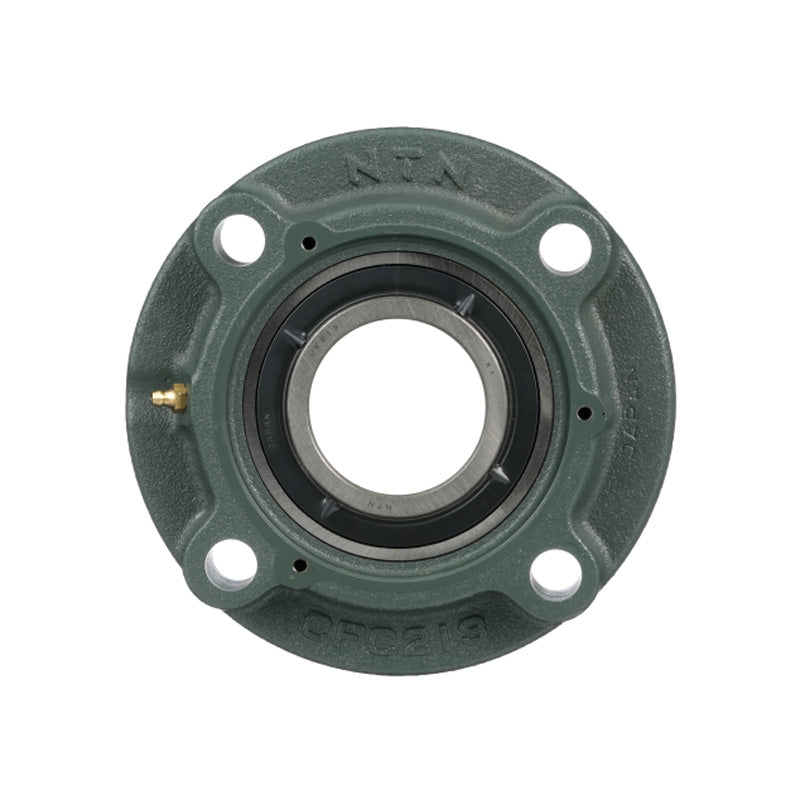

NTN UCFCX11D1 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Insert - Allow 2-3 Days
NTN UCFCX11D1 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Insert - Allow 2-3 Days
Regular price
Rs. 8,620.78
Regular price
Sale price
Rs. 8,620.78
Taxes included.
In stock
Price Break
10+
Rs. 7,672.49
19+
Rs. 7,241.46
29+
Rs. 7,155.25
39+
Rs. 7,069.04
49+
Rs. 6,982.83
74+
Rs. 6,896.62
99+
Rs. 6,465.59
199+
Rs. 6,379.38
249+
Rs. 6,293.17
499+
Rs. 6,206.96
999+
Rs. 6,034.55
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 107.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| L | 180mm |
| J | 152mm |
| (J<sub>1</sub>) | 107.5mm |
| A<sub>2</sub> | 4mm |
| N | 16mm |
| A<sub>3</sub> | 22mm |
| A<sub>1</sub> | 26mm |
| A | 48mm |
| H<sub>3</sub> | 127mm |
| A<sub>0</sub> | 65.7mm |
| B | 65.1mm |
| S | 25.4mm |
| F (Min.) | 83mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58 kN |
| Static load C<sub>0r</sub> | 36 kN |
| Fatigue load limit C<sub>u</sub> | 2.83 kN |
| --- | Unit information |
| Mass | 4.2 kg |
