SKU: UCFCX05D1-NTN

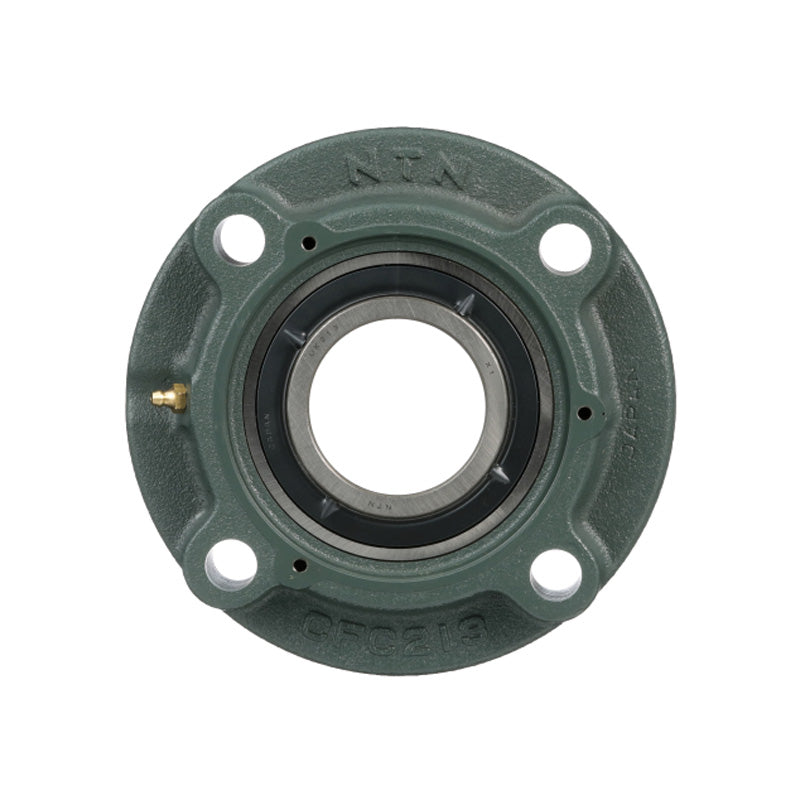

NTN UCFCX05D1 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert - Allow 2-3 Days
NTN UCFCX05D1 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert - Allow 2-3 Days
Regular price
Rs. 4,562.59
Regular price
Sale price
Rs. 4,562.59
Taxes included.
In stock
Price Break
10+
Rs. 4,060.71
19+
Rs. 3,832.58
29+
Rs. 3,786.95
39+
Rs. 3,741.32
49+
Rs. 3,695.70
74+
Rs. 3,650.07
99+
Rs. 3,421.94
199+
Rs. 3,376.32
249+
Rs. 3,330.69
499+
Rs. 3,285.06
999+
Rs. 3,193.81
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 65.1mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| L | 111mm |
| J | 92mm |
| (J<sub>1</sub>) | 65.1mm |
| A<sub>2</sub> | 10mm |
| N | 9.5mm |
| A<sub>3</sub> | 6mm |
| A<sub>1</sub> | 24mm |
| A | 30mm |
| H<sub>3</sub> | 76mm |
| A<sub>0</sub> | 38.2mm |
| B | 38.1mm |
| S | 15.9mm |
| F (Min.) | 46mm |
| Fixing bolt | M8 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 21.6 kN |
| Static load C<sub>0r</sub> | 11.3 kN |
| Fatigue load limit C<sub>u</sub> | 0.795 kN |
| --- | Unit information |
| Mass | 1.2 kg |
