SKU: UCFCE218-SNR

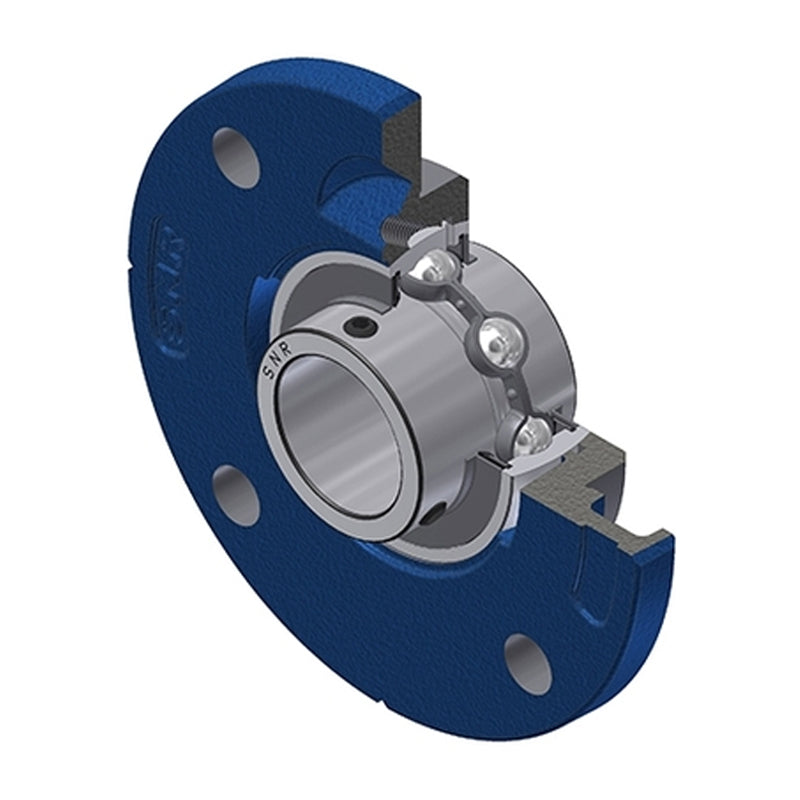

SNR UCFCE218 Metric Four Bolt Cast Iron Round Flanged Housing with 90mm Insert - Allow 2-3 Days
SNR UCFCE218 Metric Four Bolt Cast Iron Round Flanged Housing with 90mm Insert - Allow 2-3 Days
Regular price
Rs. 49,635.06
ex VAT
Regular price
Sale price
Rs. 49,635.06
ex VAT
In stock
Price Break
5+
Rs. 49,138.71
10+
Rs. 47,153.31
20+
Rs. 46,160.61
50+
Rs. 44,671.55
100+
Rs. 43,678.85
500+
Rs. 41,197.10
1000+
Rs. 34,744.54
Couldn't load pickup availability
Description
Description
UCFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCFCE
- Pitch Circle Diameter:
- 220mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 90mm |
| A | 37mm |
| A1 | 22.5mm |
| A2 | 60.3mm |
| A3 | 3mm |
| B | 96mm |
| e | 4mm |
| H3 | 190mm |
| J | 220mm |
| L | 265mm |
| N | 23mm |
| S | 39.7mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 96 kN |
| Static load C0 | 71.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 9.85 kg |
