SKU: UCFCE215-SNR

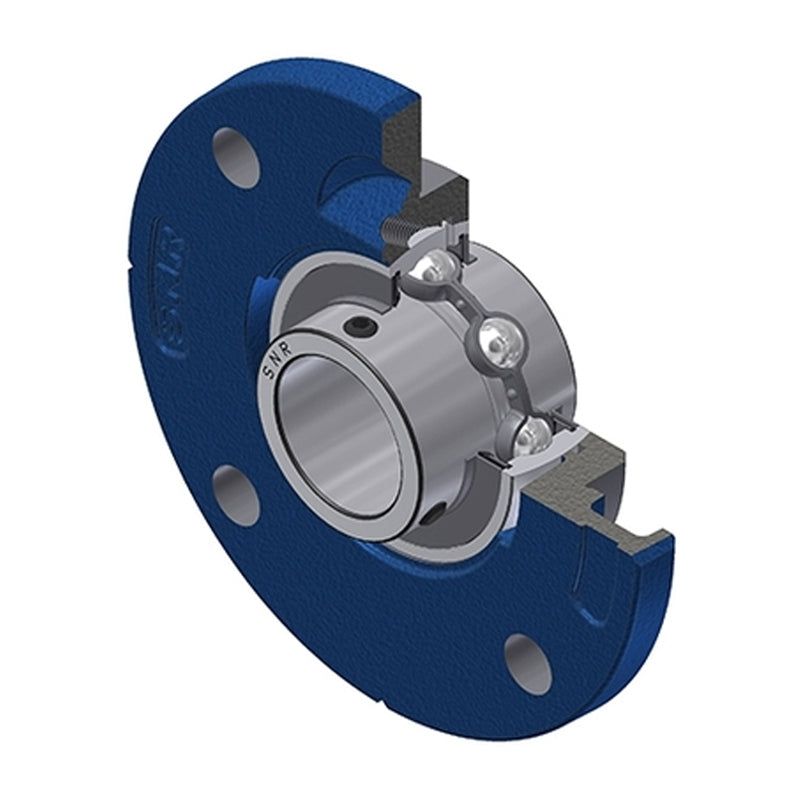

SNR UCFCE215 Metric Four Bolt Cast Iron Round Flanged Housing with 75mm Insert - Allow 2-3 Days
SNR UCFCE215 Metric Four Bolt Cast Iron Round Flanged Housing with 75mm Insert - Allow 2-3 Days
Regular price
Rs. 16,452.97
Regular price
Sale price
Rs. 16,452.97
Taxes included.
In stock
Price Break
10+
Rs. 14,643.14
19+
Rs. 13,820.49
29+
Rs. 13,655.97
39+
Rs. 13,491.44
49+
Rs. 13,326.91
74+
Rs. 13,162.38
99+
Rs. 12,339.73
199+
Rs. 12,175.20
249+
Rs. 12,010.67
499+
Rs. 11,846.14
999+
Rs. 11,517.08
Description
Description
UCFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCFCE
- Pitch Circle Diameter:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 75mm |
| A | 33mm |
| A1 | 18mm |
| A2 | 44.5mm |
| A3 | 6mm |
| B | 77.8mm |
| H3 | 160mm |
| J | 184mm |
| L | 220mm |
| N | 18mm |
| S | 33.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 66 kN |
| Static load C0 | 49.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 5.45 kg |
