SKU: UCFCE208-SNR

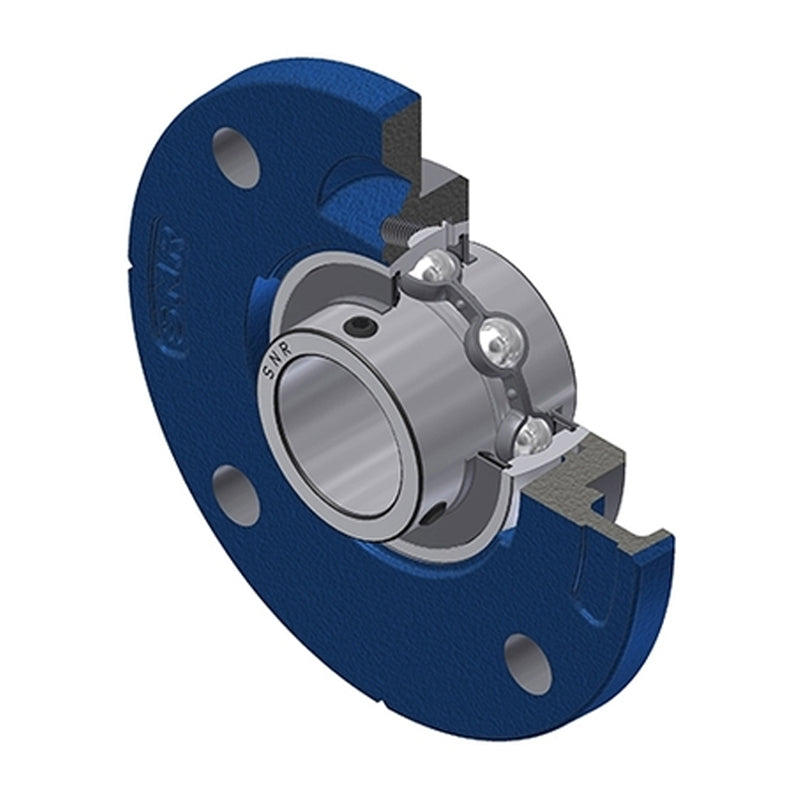

SNR UCFCE208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert
SNR UCFCE208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert
Regular price
Rs. 4,950.49
Regular price
Sale price
Rs. 4,950.49
Taxes included.
In stock
Price Break
10+
Rs. 4,405.94
19+
Rs. 4,158.41
29+
Rs. 4,108.91
39+
Rs. 4,059.40
49+
Rs. 4,009.90
74+
Rs. 3,960.39
99+
Rs. 3,712.87
199+
Rs. 3,663.36
249+
Rs. 3,613.86
499+
Rs. 3,564.35
999+
Rs. 3,465.34
Description
Description
UCFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFCE
- Pitch Circle Diameter:
- 120mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 23mm |
| A1 | 11.5mm |
| A2 | 29.2mm |
| A3 | 2mm |
| B | 49.2mm |
| e | -1mm |
| H3 | 100mm |
| J | 120mm |
| L | 145mm |
| N | 11.5mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.64 kg |
