SKU: UCFCE206-SNR

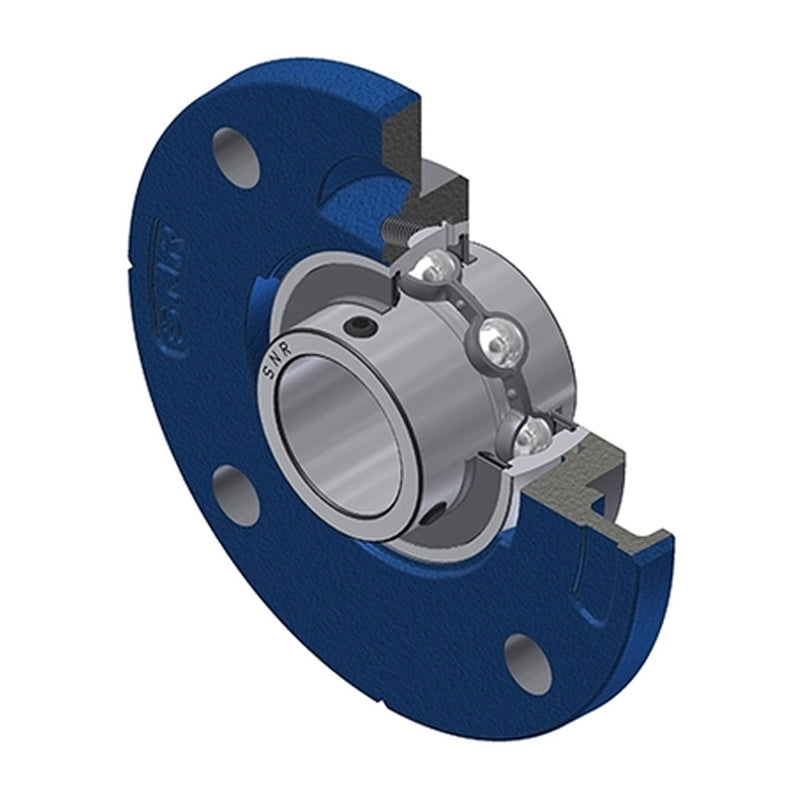

SNR UCFCE206 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert - Allow 2-3 Days
SNR UCFCE206 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert - Allow 2-3 Days
Regular price
Rs. 3,839.28
Regular price
Sale price
Rs. 3,839.28
Taxes included.
In stock
Price Break
10+
Rs. 3,416.96
19+
Rs. 3,225.00
29+
Rs. 3,186.60
39+
Rs. 3,148.21
49+
Rs. 3,109.82
74+
Rs. 3,071.42
99+
Rs. 2,879.46
199+
Rs. 2,841.07
249+
Rs. 2,802.67
499+
Rs. 2,764.28
999+
Rs. 2,687.50
Description
Description
UCFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCFCE
- Pitch Circle Diameter:
- 100mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 30mm |
| A | 21mm |
| A1 | 9.5mm |
| A2 | 20.2mm |
| A3 | 2mm |
| B | 38.1mm |
| e | -2mm |
| H3 | 80mm |
| J | 100mm |
| L | 125mm |
| N | 11.5mm |
| S | 15.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.99 kg |
