SKU: UCFC218D1-NTN

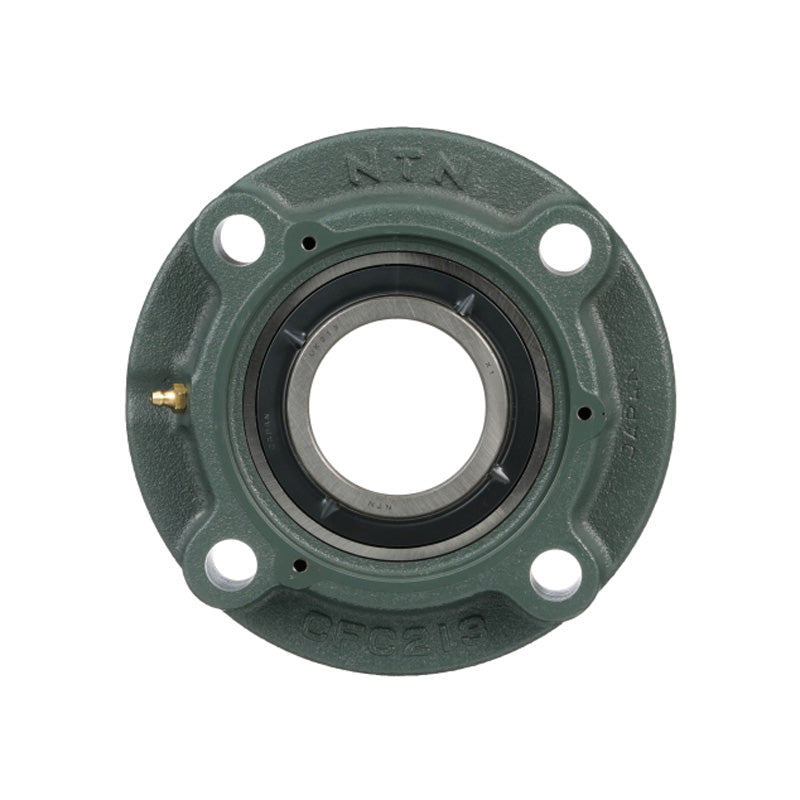

NTN UCFC218D1 Metric Four Bolt Cast Iron Round Flanged Housing with 90mm Insert - Allow 2-3 Days
NTN UCFC218D1 Metric Four Bolt Cast Iron Round Flanged Housing with 90mm Insert - Allow 2-3 Days
Regular price
Rs. 29,078.18
Regular price
Sale price
Rs. 29,078.18
Taxes included.
In stock
Price Break
10+
Rs. 25,879.58
19+
Rs. 24,425.67
29+
Rs. 24,134.89
39+
Rs. 23,844.11
49+
Rs. 23,553.33
74+
Rs. 23,262.54
99+
Rs. 21,808.64
199+
Rs. 21,517.85
249+
Rs. 21,227.07
499+
Rs. 20,936.29
999+
Rs. 20,354.73
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 155.6mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 90mm |
| L | 265mm |
| J | 220mm |
| (J<sub>1</sub>) | 155.6mm |
| A<sub>2</sub> | 22mm |
| N | 23mm |
| A<sub>3</sub> | 18mm |
| A<sub>1</sub> | 50mm |
| A | 68mm |
| H<sub>3</sub> | 190mm |
| A<sub>0</sub> | 96.3mm |
| B | 96mm |
| S | 39.7mm |
| F (Min.) | 119mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 106 kN |
| Static load C<sub>0r</sub> | 71.5 kN |
| Fatigue load limit C<sub>u</sub> | 5 kN |
| --- | Unit information |
| Mass | 13 kg |
