SKU: UCFC218-SNR

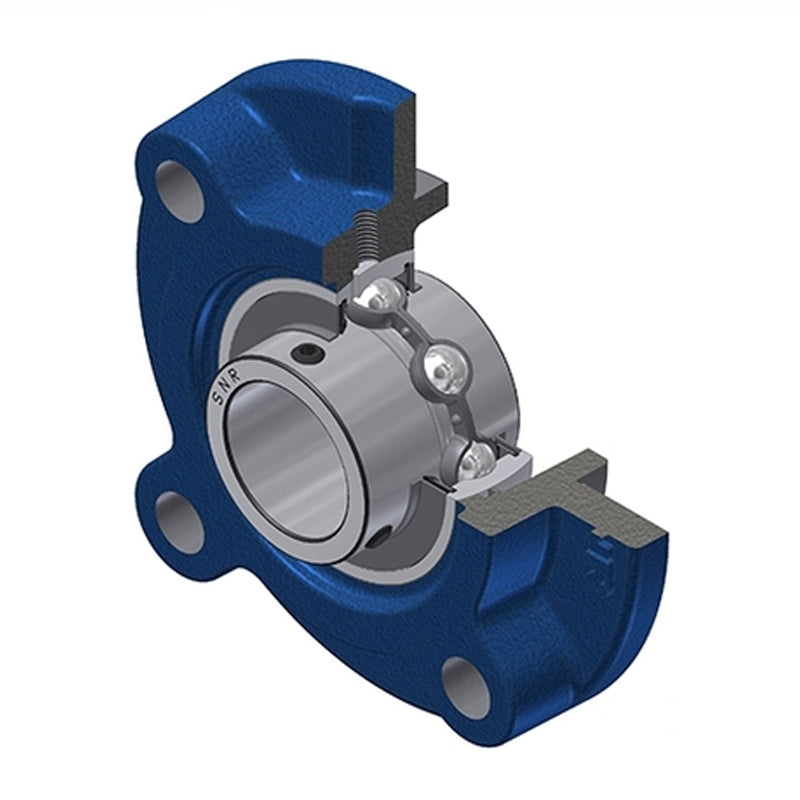

SNR UCFC218 Metric Four Bolt Cast Iron Round Flanged Housing with 90mm Insert - Allow 2-3 Days
SNR UCFC218 Metric Four Bolt Cast Iron Round Flanged Housing with 90mm Insert - Allow 2-3 Days
Regular price
Rs. 28,230.70
Regular price
Sale price
Rs. 28,230.70
Taxes included.
In stock
Price Break
10+
Rs. 25,125.32
19+
Rs. 23,713.79
29+
Rs. 23,431.48
39+
Rs. 23,149.17
49+
Rs. 22,866.87
74+
Rs. 22,584.56
99+
Rs. 21,173.03
199+
Rs. 20,890.72
249+
Rs. 20,608.41
499+
Rs. 20,326.10
999+
Rs. 19,761.49
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 220mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 90mm |
| A | 68mm |
| A1 | 20mm |
| A2 | 78.3mm |
| A4 | 50mm |
| B | 96mm |
| e | 22mm |
| H3 | 190mm |
| J | 220mm |
| L | 265mm |
| N | 23mm |
| S | 39.7mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 96 kN |
| Static load C0 | 71.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 13.07 kg |
