SKU: UCFC214-SNR

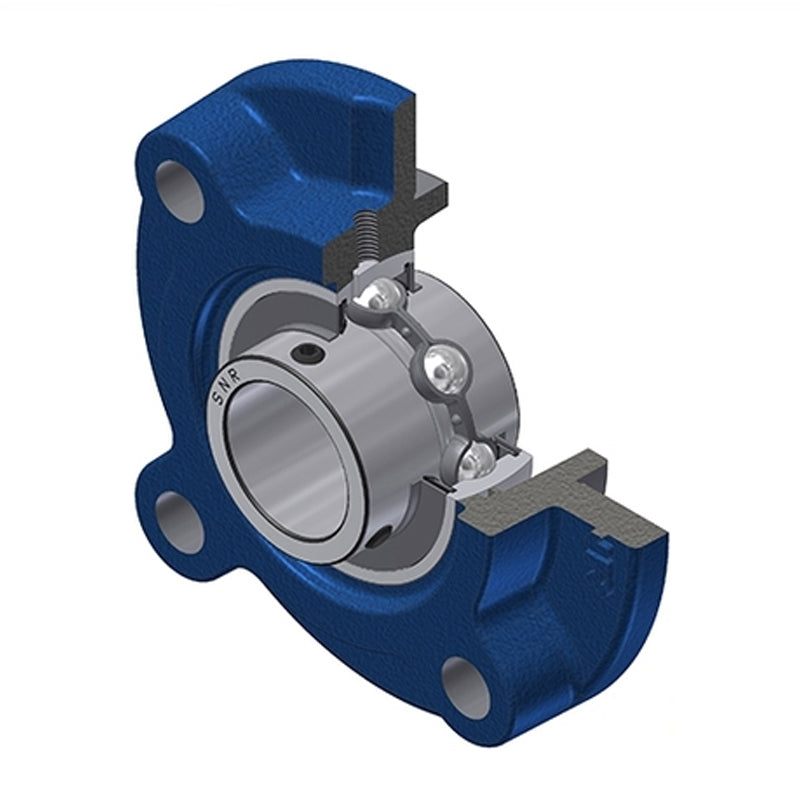

SNR UCFC214 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert - Allow 2-3 Days
SNR UCFC214 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert - Allow 2-3 Days
Regular price
Rs. 14,807.93
Regular price
Sale price
Rs. 14,807.93
Taxes included.
In stock
Price Break
10+
Rs. 13,179.06
19+
Rs. 12,438.66
29+
Rs. 12,290.58
39+
Rs. 12,142.50
49+
Rs. 11,994.42
74+
Rs. 11,846.34
99+
Rs. 11,105.95
199+
Rs. 10,957.87
249+
Rs. 10,809.79
499+
Rs. 10,661.71
999+
Rs. 10,365.55
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 177mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 70mm |
| A | 52mm |
| A1 | 16mm |
| A2 | 61.4mm |
| A4 | 38mm |
| B | 74.6mm |
| e | 17mm |
| H3 | 150mm |
| J | 177mm |
| L | 215mm |
| N | 19mm |
| S | 30.2mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 45 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 6.32 kg |
