SKU: UCFC211-32-SNR

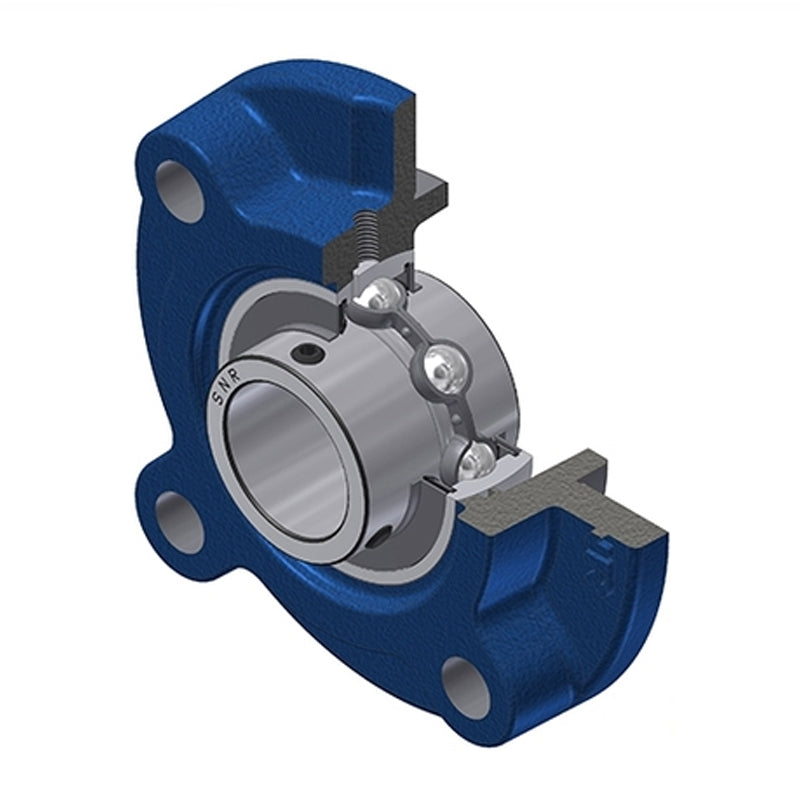

SNR UCFC211-32 Imperial Four Bolt Cast Iron Round Flanged Housing with 2 inch Insert - Allow 2-3 Days
SNR UCFC211-32 Imperial Four Bolt Cast Iron Round Flanged Housing with 2 inch Insert - Allow 2-3 Days
Regular price
Rs. 6,787.56
Regular price
Sale price
Rs. 6,787.56
Taxes included.
In stock
Price Break
10+
Rs. 6,040.93
19+
Rs. 5,701.55
29+
Rs. 5,633.67
39+
Rs. 5,565.80
49+
Rs. 5,497.92
74+
Rs. 5,430.05
99+
Rs. 5,090.67
199+
Rs. 5,022.79
249+
Rs. 4,954.92
499+
Rs. 4,887.04
999+
Rs. 4,751.29
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50.8mm = 2 Inch
- Style:
- UCFC
- Pitch Circle Diameter:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 2 inch |
| A | 42mm |
| A1 | 13mm |
| A2 | 46.4mm |
| A4 | 30mm |
| B | 55.6mm |
| e | 13mm |
| H3 | 125mm |
| J | 150mm |
| L | 185mm |
| N | 19mm |
| S | 22.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 3.98 kg |
