SKU: UCFC207-SNR

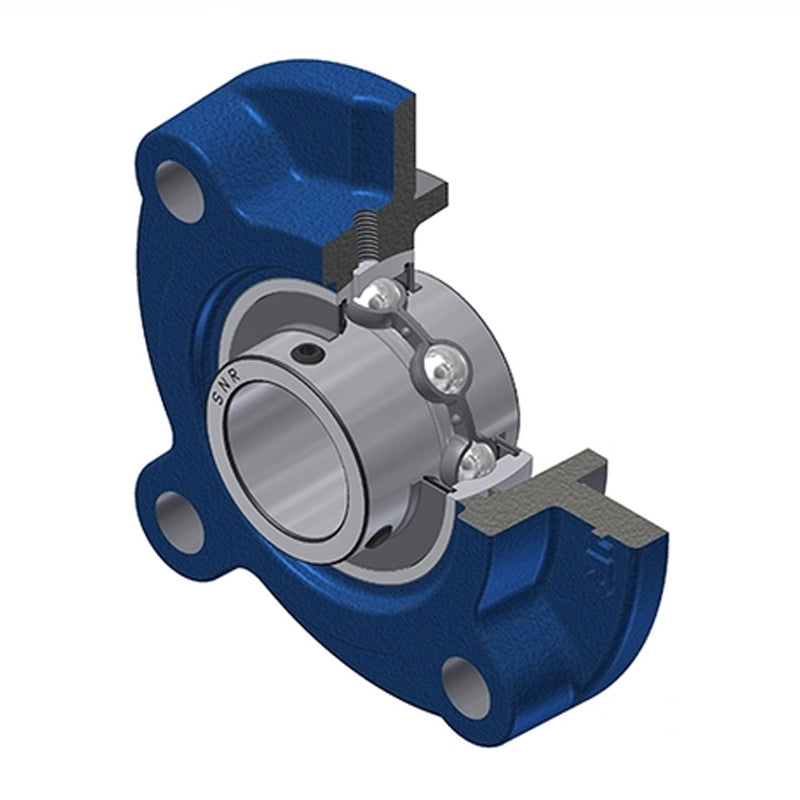

SNR UCFC207 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert
SNR UCFC207 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert
Regular price
Rs. 4,689.33
Regular price
Sale price
Rs. 4,689.33
Taxes included.
In stock
Price Break
10+
Rs. 4,173.50
19+
Rs. 3,939.04
29+
Rs. 3,892.14
39+
Rs. 3,845.25
49+
Rs. 3,798.36
74+
Rs. 3,751.46
99+
Rs. 3,517.00
199+
Rs. 3,470.10
249+
Rs. 3,423.21
499+
Rs. 3,376.32
999+
Rs. 3,282.53
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 110mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 34mm |
| A1 | 9mm |
| A2 | 36.4mm |
| A4 | 26mm |
| B | 42.9mm |
| e | 11mm |
| H3 | 90mm |
| J | 110mm |
| L | 135mm |
| N | 14mm |
| S | 17.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.66 kg |
