SKU: UCFC14

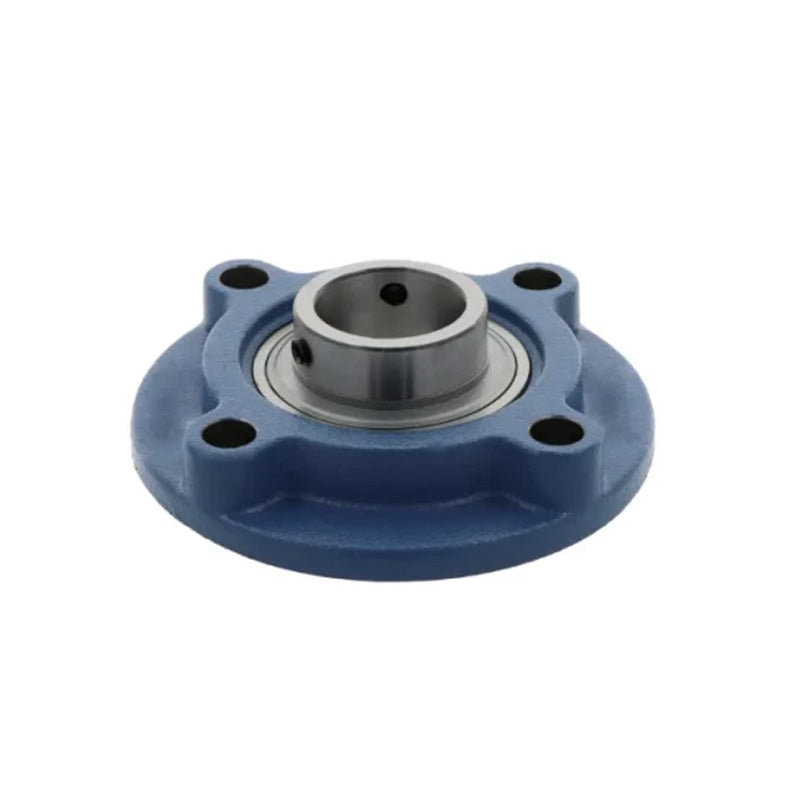

UCFC14 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert
UCFC14 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert
Regular price
Rs. 10,701.09
Regular price
Sale price
Rs. 10,701.09
Taxes included.
In stock
Price Break
10+
Rs. 9,523.97
19+
Rs. 8,988.92
29+
Rs. 8,881.90
39+
Rs. 8,774.89
49+
Rs. 8,667.88
74+
Rs. 8,560.87
99+
Rs. 8,025.82
199+
Rs. 7,918.81
249+
Rs. 7,811.80
499+
Rs. 7,704.78
999+
Rs. 7,490.76
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 134.3mm
Technical
Technical
| d | 70mm |
|---|---|
| a | 222mm |
| p | 190mm |
| (e) | 134.3mm |
| i | 14mm |
| s | 19mm |
| j | 20mm |
| k | 14mm |
| g | 36mm |
| f | 164mm |
| z | 58.5mm |
| B | 77.8mm |
| n | 33.3mm |
| Bolt size | M16 |
| Bearing no | UCX14 |
| Housing no | FCX14 |
| Weight | 6.6 kg |
