SKU: UCFC.215
UCFC215 Metric Four Bolt Cast Iron Round Flanged Housing with 75mm Insert
UCFC215 Metric Four Bolt Cast Iron Round Flanged Housing with 75mm Insert
Regular price
Rs. 21,897.61
Regular price
Sale price
Rs. 21,897.61
Taxes included.
In stock
Price Break
10+
Rs. 19,488.87
19+
Rs. 18,393.99
29+
Rs. 18,175.02
39+
Rs. 17,956.04
49+
Rs. 17,737.06
74+
Rs. 17,518.09
99+
Rs. 16,423.21
199+
Rs. 16,204.23
249+
Rs. 15,985.26
499+
Rs. 15,766.28
999+
Rs. 15,328.33
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 184mm

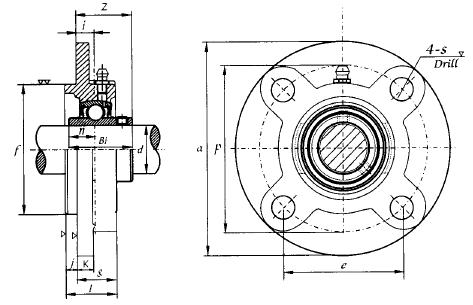

Technical
Technical
| d | 75mm |
|---|---|
| a | 220mm |
| P | 184mm |
| e | 130.1mm |
| i | 18mm |
| L | 56mm |
| s | 19mm |
| j | 16mm |
| k | 18mm |
| g | 40mm |
| f | 160mm |
| z | 62.5mm |
| Bi | 77.8mm |
| n | 33.3mm |
| Bolt Size | M16 |
| Weight | 7.3 kg |
| Dynamic load | 5190 kgf |
| Static load | 4190 kgf |
