SKU: UCFC.210.TS.CHAL

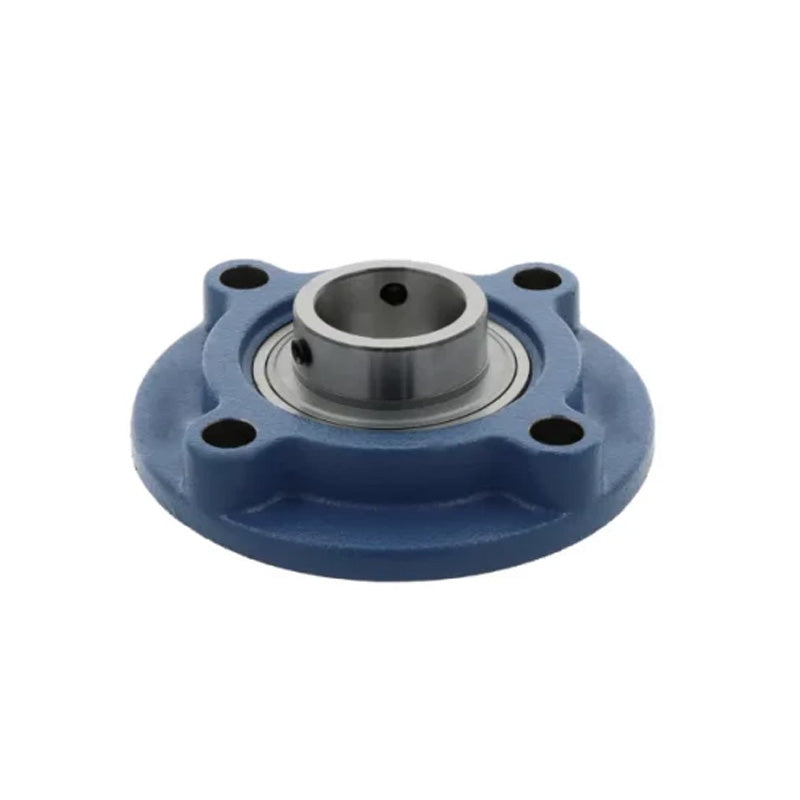

Challenge / FK UCFC210 Metric Cast Iron Four Bolt Round Flanged Housing with 50mm Bore 165mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCFC210 Metric Cast Iron Four Bolt Round Flanged Housing with 50mm Bore 165mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 10,117.32
Regular price
Sale price
Rs. 10,117.32
Taxes included.
Equivalent to: UCFC.210
In stock
Price Break
10+
Rs. 9,004.41
19+
Rs. 8,498.55
29+
Rs. 8,397.38
39+
Rs. 8,296.20
49+
Rs. 8,195.03
74+
Rs. 8,093.86
99+
Rs. 7,587.99
199+
Rs. 7,486.82
249+
Rs. 7,385.64
499+
Rs. 7,284.47
999+
Rs. 7,082.12
Description
Description
UCFC Cast Iron 4 Bolt Round Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFC.210
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 50mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 138mm
Technical
Technical
| Shaft Diameter d | 50mm |
|---|---|
| a | 165mm |
| p | 138mm |
| e | 97.6mm |
| i | 10mm |
| g | 28mm |
| l | 40mm |
| s | 16 inch |
| j | 12mm |
| k | 14mm |
| f | 110mm |
| z | 42.6mm |
| Bi | 51.6mm |
| n | 19mm |
| Bolt Size | M14mm |
| Insert No | UC210 |
| Housing No | FC210 |
