SKU: UCFC.206-18

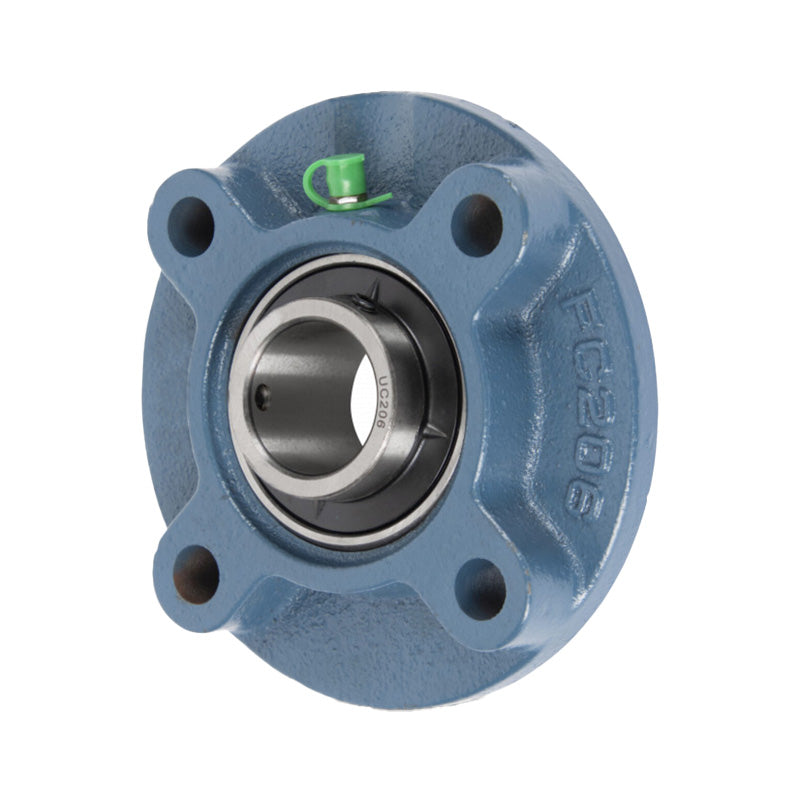

UCFC206-18 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-1/8 inch Insert
UCFC206-18 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-1/8 inch Insert
Regular price
Rs. 2,066.22
Regular price
Sale price
Rs. 2,066.22
Taxes included.
In stock
Price Break
10+
Rs. 1,838.94
19+
Rs. 1,735.62
29+
Rs. 1,714.96
39+
Rs. 1,694.30
49+
Rs. 1,673.64
74+
Rs. 1,652.98
99+
Rs. 1,549.67
199+
Rs. 1,529.00
249+
Rs. 1,508.34
499+
Rs. 1,487.68
999+
Rs. 1,446.35
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- UCFC
- Pitch Circle Diameter:
- 100.01mm = 100.01 (3-15/16) inch
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| a | 4-29-32 inch |
| P | 3-15/16 inch |
| e | 2-25/32 inch |
| i | 25/64 inch |
| L | 1-7/32 inch |
| s | 15/32 inch |
| j | 5/16 inch |
| k | 5/16 inch |
| g | 29/32 inch |
| f | 3.1496 inch |
| z | 1-9/32 inch |
| Bi | 1.5 inch |
| n | 0.6260 inch |
| Bolt Size | 3/8 inch |
| Weight | 1.4 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
