SKU: UCFB205

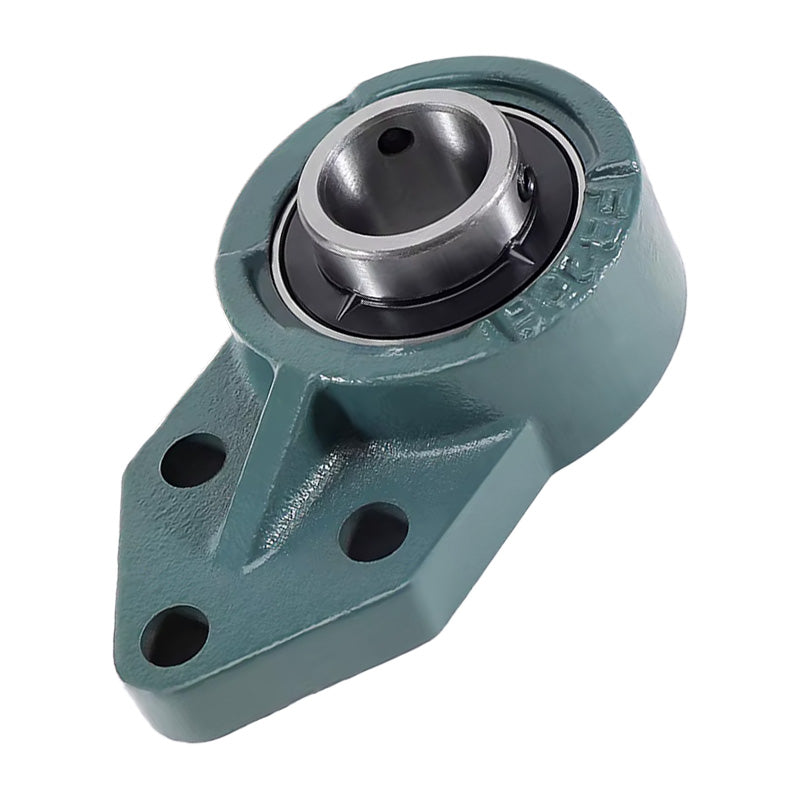

UCFB205 Metric 3 Bolt Cast Iron Bracket Flange Bearing 25mm Bore
UCFB205 Metric 3 Bolt Cast Iron Bracket Flange Bearing 25mm Bore
Regular price
Rs. 1,249.46
Regular price
Sale price
Rs. 1,249.46
Taxes included.
In stock
Price Break
10+
Rs. 1,112.02
19+
Rs. 1,049.55
29+
Rs. 1,037.05
39+
Rs. 1,024.56
49+
Rs. 1,012.06
74+
Rs. 999.57
99+
Rs. 937.10
199+
Rs. 924.60
249+
Rs. 912.11
499+
Rs. 899.61
999+
Rs. 874.62
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- UCFB
- Bolt Hole Centres:
- 34mm
Technical
Technical
| d | 25mm |
|---|---|
| w | 116mm |
| b | 68mm |
| k | 52mm |
| a | 56mm |
| l | 27mm |
| s | 10mm |
| g | 13mm |
| h | 45mm |
| j | 27mm |
| e | 34mm |
| i | 16mm |
| z | 35.8mm |
| B | 34.1mm |
| n | 14.3mm |
| Bolt size | M8 |
| Bearing no | UC205 |
| Housing no | FB205 |
| Weight | 0.637 kg |
