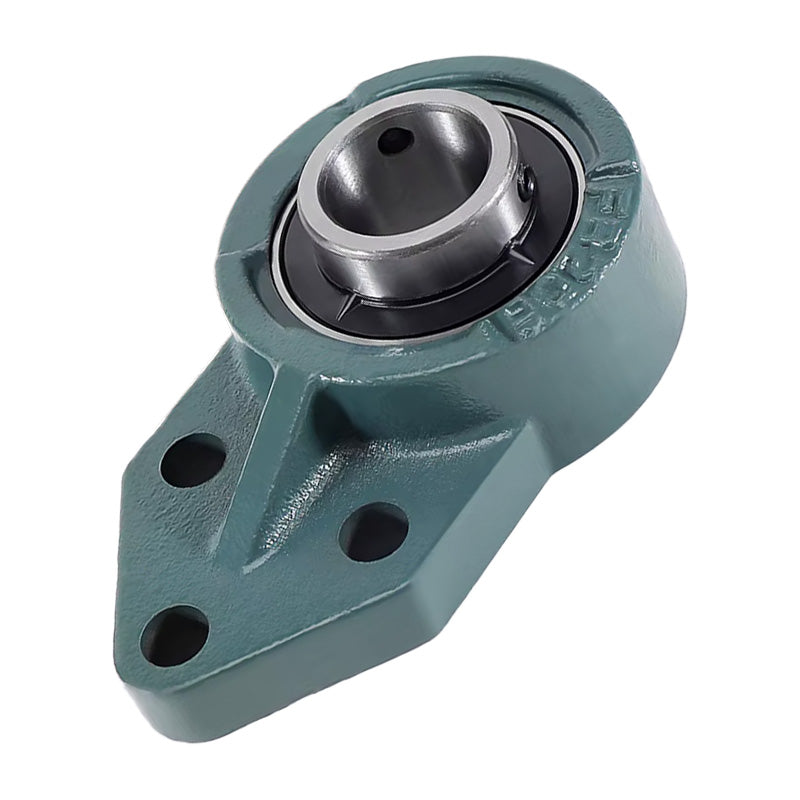

UCFB201 Metric 3 Bolt Cast Iron Bracket Flange Bearing 12mm Bore
UCFB201 Metric 3 Bolt Cast Iron Bracket Flange Bearing 12mm Bore
Regular price
Rs. 1,336.52
Regular price
Sale price
Rs. 1,336.52
Taxes included.
In stock
Price Break
10+
Rs. 1,189.50
19+
Rs. 1,122.68
29+
Rs. 1,109.31
39+
Rs. 1,095.95
49+
Rs. 1,082.58
74+
Rs. 1,069.22
99+
Rs. 1,002.39
199+
Rs. 989.02
249+
Rs. 975.66
499+
Rs. 962.29
999+
Rs. 935.56
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Style:
- UCFB
- Bolt Hole Centres:
- 32mm

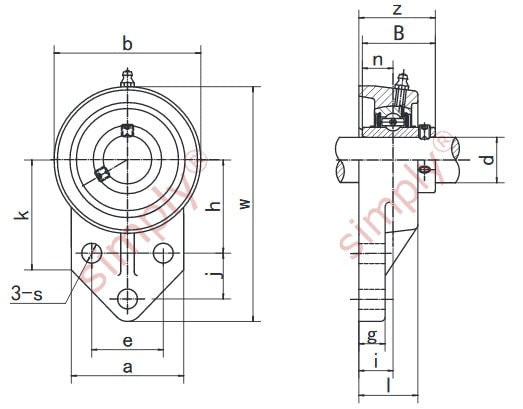

Technical
Technical
| d | 12mm |
|---|---|
| w | 110mm |
| b | 62mm |
| k | 52mm |
| a | 52mm |
| l | 25.5mm |
| s | 10mm |
| g | 13mm |
| h | 42mm |
| j | 27mm |
| e | 32mm |
| i | 15mm |
| z | 33.3mm |
| B | 31mm |
| n | 12.7mm |
| Bolt size | M8 |
| Bearing no | UC201 |
| Housing no | FB201 |
| Weight | 0.587 kg |
