SKU: UCFA208-SNR

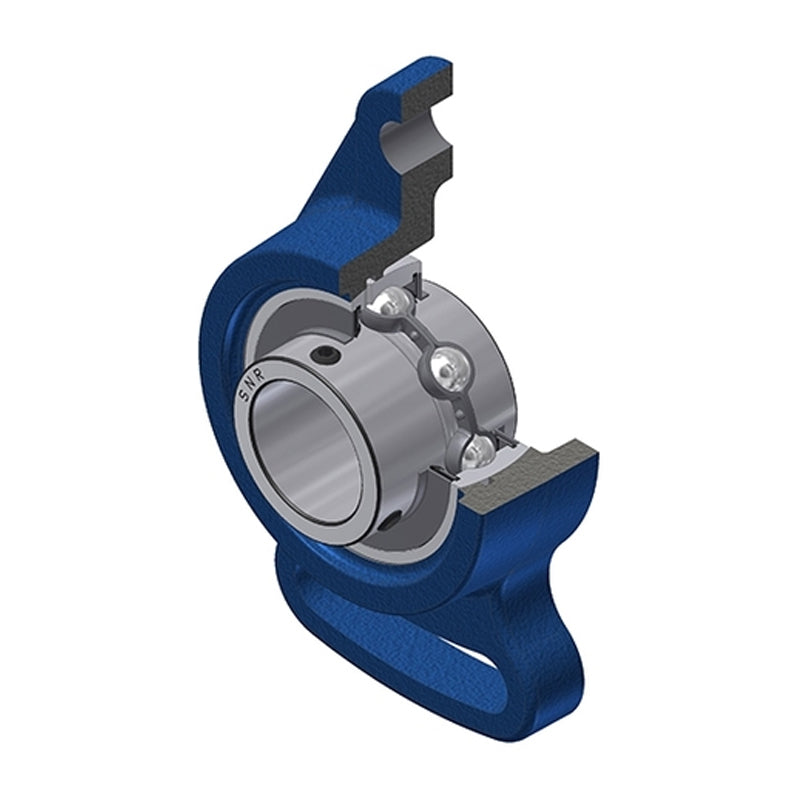

SNR UCFA208 Metric Cast Iron Adjustable Flange Unit with 40mm Insert - Allow 2-3 Days
SNR UCFA208 Metric Cast Iron Adjustable Flange Unit with 40mm Insert - Allow 2-3 Days
Regular price
Rs. 5,182.20
Regular price
Sale price
Rs. 5,182.20
Taxes included.
In stock
Price Break
10+
Rs. 4,612.16
19+
Rs. 4,353.05
29+
Rs. 4,301.23
39+
Rs. 4,249.40
49+
Rs. 4,197.58
74+
Rs. 4,145.76
99+
Rs. 3,886.65
199+
Rs. 3,834.83
249+
Rs. 3,783.01
499+
Rs. 3,731.18
999+
Rs. 3,627.54
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFA
- Bolt Hole Centres:
- 144mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 36mm |
| A1 | 16mm |
| A2 | 51.2mm |
| B | 49.2mm |
| e | 21mm |
| H | 175mm |
| J | 144mm |
| J1 | 71mm |
| L | 100mm |
| L1 | 87mm |
| N | 15mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.64 kg |
