SKU: UCFA203D1-NTN

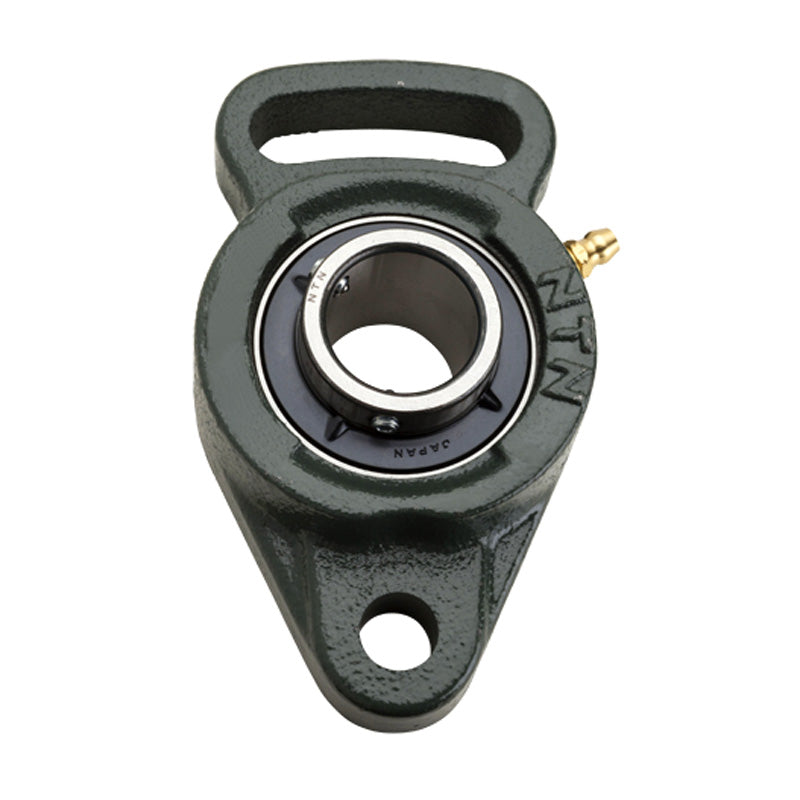

NTN UCFA203D1 Metric Cast Iron Adjustable Flange Unit with 17mm Insert - Allow 2-3 Days
NTN UCFA203D1 Metric Cast Iron Adjustable Flange Unit with 17mm Insert - Allow 2-3 Days
Regular price
Rs. 3,402.74
Regular price
Sale price
Rs. 3,402.74
Taxes included.
In stock
Price Break
5+
Rs. 3,368.71
10+
Rs. 3,232.60
20+
Rs. 3,164.55
50+
Rs. 3,062.47
100+
Rs. 2,994.41
500+
Rs. 2,824.27
1000+
Rs. 2,381.92
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Style:
- UCFA
- Bolt Hole Centres:
- 78mm
Technical
Technical
| Shaft diameter | 17mm |
|---|---|
| H | 98mm |
| J | 78mm |
| A<sub>2</sub> | 15mm |
| A<sub>1</sub> | 12mm |
| A | 25.5mm |
| N | 10mm |
| N<sub>1</sub> | 40mm |
| L | 60mm |
| L<sub>1</sub> | 50mm |
| A<sub>0</sub> | 33.3mm |
| B | 31mm |
| S | 12.7mm |
| Fixing bolt | M8 |
| Mass | 0.5 kg |
