SKU: UCFA202

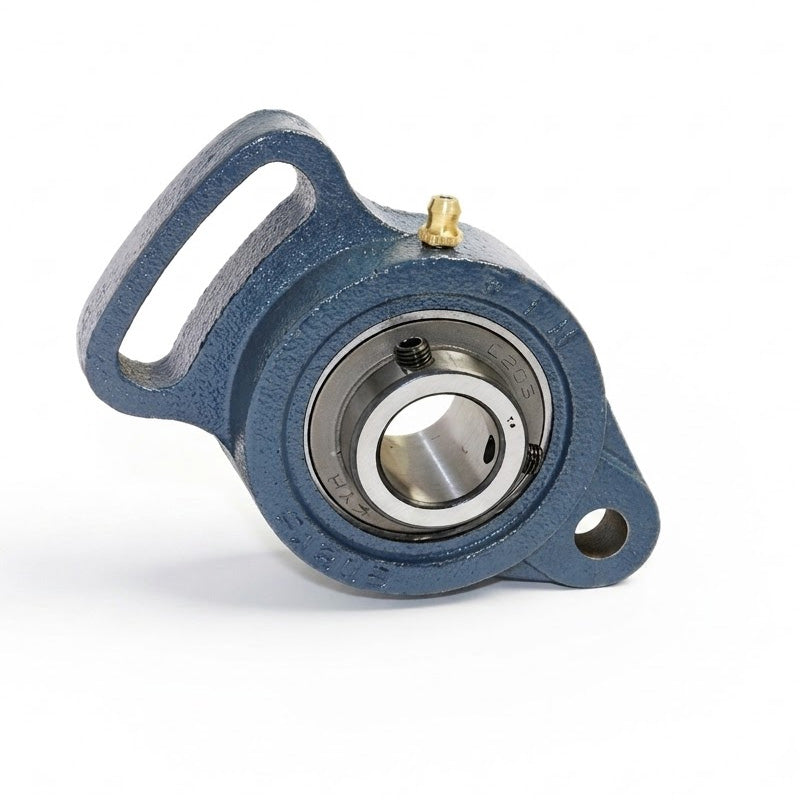

UCFA202 Metric Cast Iron Adjustable Flange Unit with 15mm Insert
UCFA202 Metric Cast Iron Adjustable Flange Unit with 15mm Insert
Regular price
Rs. 1,878.04
Regular price
Sale price
Rs. 1,878.04
Taxes included.
In stock
Price Break
10+
Rs. 1,671.46
19+
Rs. 1,577.55
29+
Rs. 1,558.77
39+
Rs. 1,539.99
49+
Rs. 1,521.21
74+
Rs. 1,502.43
99+
Rs. 1,408.53
199+
Rs. 1,389.75
249+
Rs. 1,370.97
499+
Rs. 1,352.19
999+
Rs. 1,314.63
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Style:
- UCFA
- Bolt Hole Centres:
- 78.18mm = 3.078 (3-5/64) inch
Technical
Technical
| d | 15mm |
|---|---|
| a | 3-55/64 inch |
| e | 3-5/64 inch |
| i | 19/32 inch |
| g | 15/32 inch |
| l | 1 inch |
| s | 25/64 inch |
| b | 2-3/8 inch |
| z | 1-5/16 inch |
| f | 1-37/64 inch |
| c | 1-31/32 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bolt size | 5/16 inch |
| Bearing no | UC202 |
| Housing no | FA202 |
| Weight | 0.45 kg |
