SKU: UCF324D1-NTN

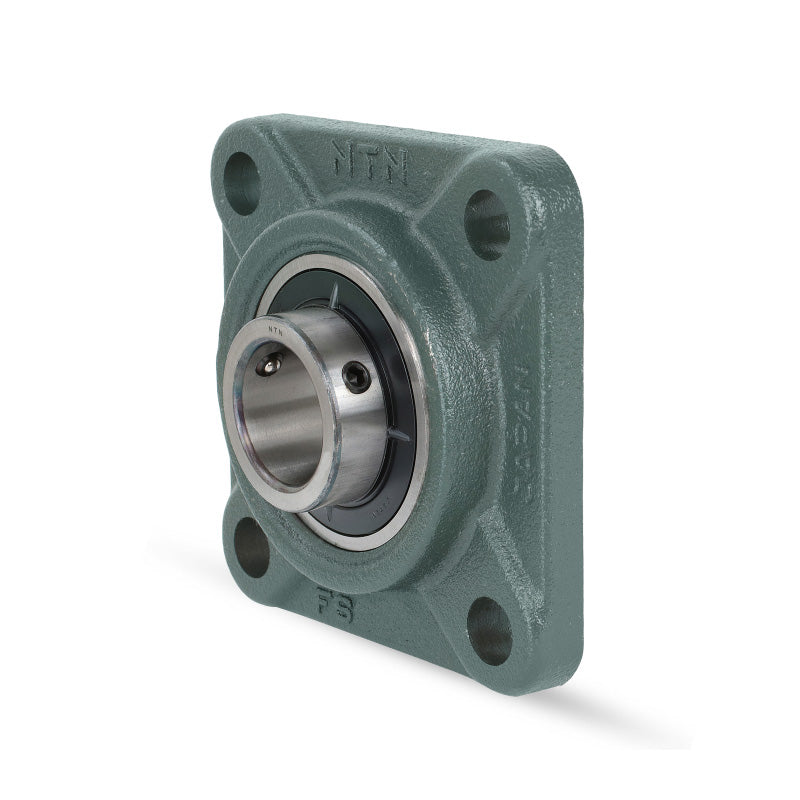

NTN UCF324D1 Metric Four Bolt Square Cast Iron Flange Housing with 120mm Bore Insert - Allow 2-3 Days
NTN UCF324D1 Metric Four Bolt Square Cast Iron Flange Housing with 120mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 92,923.70
Regular price
Sale price
Rs. 92,923.70
Taxes included.
In stock
Price Break
10+
Rs. 82,702.09
19+
Rs. 78,055.91
29+
Rs. 77,126.67
39+
Rs. 76,197.43
49+
Rs. 75,268.20
74+
Rs. 74,338.96
99+
Rs. 69,692.78
199+
Rs. 68,763.54
249+
Rs. 67,834.30
499+
Rs. 66,905.06
999+
Rs. 65,046.59
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 120mm
- Style:
- UCF
- Bolt Hole Centres:
- 290mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 120mm |
| L | 370mm |
| J | 290mm |
| A<sub>2</sub> | 65mm |
| A<sub>1</sub> | 40mm |
| A | 110mm |
| N | 41mm |
| A<sub>0</sub> | 140mm |
| B | 126mm |
| S | 51mm |
| Fixing bolt | M36 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 229 kN |
| Static load C<sub>0r</sub> | 185 kN |
| Fatigue load limit C<sub>u</sub> | 10.5 kN |
| --- | Unit information |
| Mass | 48 kg |
