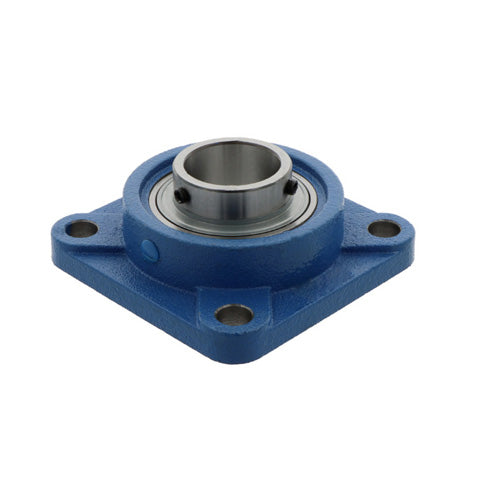

UCF218-56 Imperial Four Bolt Square Cast Iron Flange Housing with 3-1/2 inch Bore Insert
UCF218-56 Imperial Four Bolt Square Cast Iron Flange Housing with 3-1/2 inch Bore Insert
Regular price
Rs. 29,530.09
Regular price
Sale price
Rs. 29,530.09
Taxes included.
In stock
Price Break
10+
Rs. 26,281.78
19+
Rs. 24,805.28
29+
Rs. 24,509.97
39+
Rs. 24,214.67
49+
Rs. 23,919.37
74+
Rs. 23,624.07
99+
Rs. 22,147.57
199+
Rs. 21,852.27
249+
Rs. 21,556.97
499+
Rs. 21,261.66
999+
Rs. 20,671.06
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Style:
- UCF
- Bolt Hole Centres:
- 187mm
Technical
Technical
| d | 3-1/2 inch |
|---|---|
| a | 235mm |
| e | 187mm |
| i | 42mm |
| g | 26mm |
| L | 70mm |
| S | 23mm |
| Z | 98.3mm |
| Bi | 96mm |
| n | 39.7mm |
| Bolt Size | M20 |
| Weight | 11.3 kg |
| Dynamic load | 7500 kgf |
| Static load | 6170 kgf |
