SKU: UCF.217

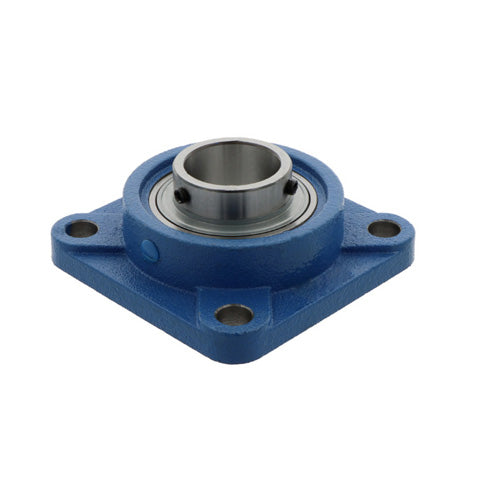

UCF217 Metric Four Bolt Square Cast Iron Flange Housing with 85mm Bore Insert
UCF217 Metric Four Bolt Square Cast Iron Flange Housing with 85mm Bore Insert
Regular price
Rs. 12,964.46
Regular price
Sale price
Rs. 12,964.46
Taxes included.
In stock
Price Break
10+
Rs. 11,538.37
19+
Rs. 10,890.15
29+
Rs. 10,760.50
39+
Rs. 10,630.86
49+
Rs. 10,501.21
74+
Rs. 10,371.57
99+
Rs. 9,723.35
199+
Rs. 9,593.70
249+
Rs. 9,464.06
499+
Rs. 9,334.41
999+
Rs. 9,075.12
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Style:
- UCF
- Bolt Hole Centres:
- 175mm
Technical
Technical
| d | 85mm |
|---|---|
| a | 220mm |
| e | 175mm |
| i | 36mm |
| g | 26mm |
| L | 63mm |
| S | 23mm |
| Z | 87.6mm |
| Bi | 85.7mm |
| n | 34.1mm |
| Bolt Size | M20 |
| Weight | 9.1 kg |
| Dynamic load | 6600 kgf |
| Static load | 5320 kgf |
