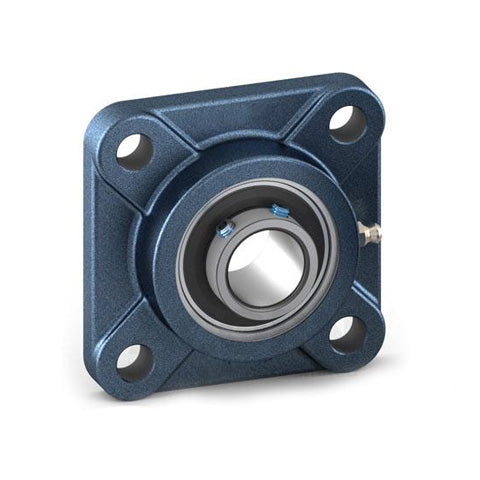

Challenge / FK UCF215-48 Imperial Cast Iron Four Bolt Square Flange Housing with 3 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCF215-48 Imperial Cast Iron Four Bolt Square Flange Housing with 3 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 29,976.87
Regular price
Sale price
Rs. 29,976.87
Taxes included.
Equivalent to: UCF.215-48
In stock
Price Break
10+
Rs. 26,679.41
19+
Rs. 25,180.57
29+
Rs. 24,880.80
39+
Rs. 24,581.03
49+
Rs. 24,281.26
74+
Rs. 23,981.50
99+
Rs. 22,482.65
199+
Rs. 22,182.88
249+
Rs. 21,883.12
499+
Rs. 21,583.35
999+
Rs. 20,983.81
Description
Description
UCF Cast Iron Four Bolt Square Flange Housing: These normal-dutybearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCF.215-48
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- UCF
- Bolt Hole Centres:
- 159mm
Technical
Technical
| Shaft Diameter d | 3 inch |
|---|---|
| Width a | 200mm |
| Recommended Bolt Centres L | 159mm |
| Back of Casting to Centre Line of Bearing i | 34mm |
| Depth of Casting at Bolt g | 22mm |
| Overall Casting Height l | 56mm |
| Bolt Hole Diameter s | 19mm |
| Back of Casting to Bearing Front z | 78.5mm |
| Bearing Insert Width Bi | 77.8mm |
| Back of Bearing to Centre Line n | 33.3mm |
| Bolt Size | 5/8 inch |
| Grub Screws x 2 | 7/16 - 20UNF inch |
| Load Rating (Dynamic) | 5190kg |
| Load Rating (Static) | 4190kg |
| Max Speed | 1200 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC215-48 |
| Housing No | F215 |
