SKU: UCF.209-28.TS.CHAL

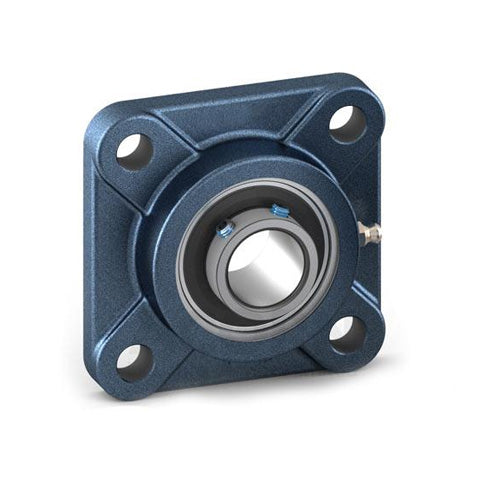

Challenge / FK UCF209-28 Imperial Cast Iron Four Bolt Square Flange Housing with 1-3/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCF209-28 Imperial Cast Iron Four Bolt Square Flange Housing with 1-3/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 7,618.40
Regular price
Sale price
Rs. 7,618.40
Taxes included.
Equivalent to: UCF.209-28
In stock
Price Break
10+
Rs. 6,780.38
19+
Rs. 6,399.46
29+
Rs. 6,323.27
39+
Rs. 6,247.09
49+
Rs. 6,170.90
74+
Rs. 6,094.72
99+
Rs. 5,713.80
199+
Rs. 5,637.62
249+
Rs. 5,561.43
499+
Rs. 5,485.25
999+
Rs. 5,332.88
Description
Description
UCF Cast Iron Four Bolt Square Flange Housing: These normal-dutybearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCF.209-28
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- UCF
- Bolt Hole Centres:
- 105mm
Technical
Technical
| Shaft Diameter d | 1-3/4 inch |
|---|---|
| Width a | 137mm |
| Recommended Bolt Centres L | 105mm |
| Back of Casting to Centre Line of Bearing i | 22mm |
| Depth of Casting at Bolt g | 18mm |
| Overall Casting Height l | 38mm |
| Bolt Hole Diameter s | 16mm |
| Back of Casting to Bearing Front z | 52.2mm |
| Bearing Insert Width Bi | 49.2mm |
| Back of Bearing to Centre Line n | 19mm |
| Bolt Size | 1/2 inch |
| Grub Screws x 2 | 5/16 - 24UNF inch |
| Load Rating (Dynamic) | 2560kg |
| Load Rating (Static) | 1810kg |
| Max Speed | 1900 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC209-28 |
| Housing No | F209 |
