SKU: UCF.209-28

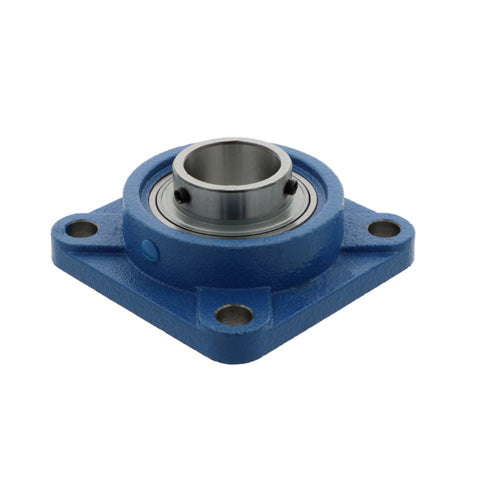

UCF209-28 Imperial Four Bolt Square Cast Iron Flange Housing with 1-3/4 inch Bore Insert
UCF209-28 Imperial Four Bolt Square Cast Iron Flange Housing with 1-3/4 inch Bore Insert
Regular price
Rs. 2,421.33
ex VAT
Regular price
Sale price
Rs. 2,421.33
ex VAT
Equivalent to: SF1-3/4
In stock
Price Break
10+
Rs. 2,154.98
19+
Rs. 2,033.92
29+
Rs. 2,009.70
39+
Rs. 1,985.49
49+
Rs. 1,961.28
74+
Rs. 1,937.06
99+
Rs. 1,816.00
199+
Rs. 1,791.78
249+
Rs. 1,767.57
499+
Rs. 1,743.36
999+
Rs. 1,694.93
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: SF1-3/4
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- UCF
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| a | 137mm |
| e | 105mm |
| i | 22mm |
| g | 18mm |
| L | 38mm |
| S | 16mm |
| Z | 52.2mm |
| Bi | 49.2mm |
| n | 19mm |
| Bolt Size | M14 |
| Weight | 2.3 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 3700 rpm |
