SKU: UCF.206-18
UCF206-18 Imperial Four Bolt Square Cast Iron Flange Housing with 1-1/8 inch Bore Insert
UCF206-18 Imperial Four Bolt Square Cast Iron Flange Housing with 1-1/8 inch Bore Insert
Regular price
Rs. 1,145.77
Regular price
Sale price
Rs. 1,145.77
Taxes included.
Equivalent to: SF1-1/8
In stock
Price Break
10+
Rs. 1,019.74
19+
Rs. 962.45
29+
Rs. 950.99
39+
Rs. 939.53
49+
Rs. 928.07
74+
Rs. 916.62
99+
Rs. 859.33
199+
Rs. 847.87
249+
Rs. 836.41
499+
Rs. 824.95
999+
Rs. 802.04
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: SF1-1/8
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- UCF
- Bolt Hole Centres:
- 83mm

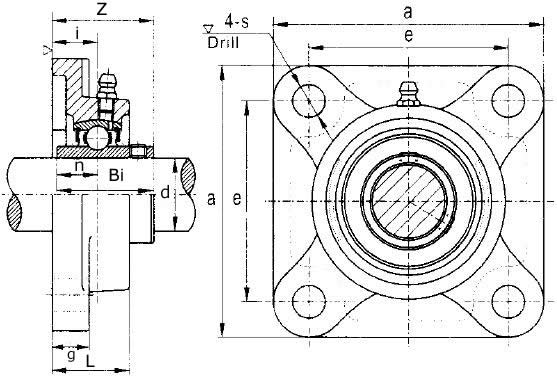

Technical
Technical
| d | 1-1/8 inch |
|---|---|
| a | 108mm |
| e | 83mm |
| i | 18mm |
| g | 14mm |
| L | 31mm |
| S | 12mm |
| Z | 40.2mm |
| Bi | 38.1mm |
| n | 15.9mm |
| Bolt Size | M10 |
| Weight | 1.1 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
