SKU: UCF.203.TS.CHAL

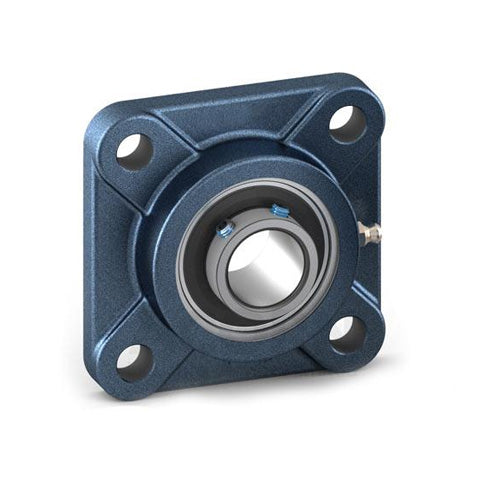

Challenge / FK UCF203 Metric Cast Iron Four Bolt Square Flange Housing with 17mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCF203 Metric Cast Iron Four Bolt Square Flange Housing with 17mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 3,073.73
Regular price
Sale price
Rs. 3,073.73
Taxes included.
Equivalent to: UCF.203
In stock
Price Break
10+
Rs. 2,735.62
19+
Rs. 2,581.93
29+
Rs. 2,551.20
39+
Rs. 2,520.46
49+
Rs. 2,489.72
74+
Rs. 2,458.98
99+
Rs. 2,305.30
199+
Rs. 2,274.56
249+
Rs. 2,243.82
499+
Rs. 2,213.09
999+
Rs. 2,151.61
Description
Description
UCF Cast Iron Four Bolt Square Flange Housing: These normal-dutybearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCF.203
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 17mm
- Style:
- UCF
- Bolt Hole Centres:
- 64mm
Technical
Technical
| Shaft Diameter d | 17mm |
|---|---|
| Width a | 86mm |
| Recommended Bolt Centres L | 64mm |
| Back of Casting to Centre Line of Bearing i | 15mm |
| Depth of Casting at Bolt g | 12mm |
| Overall Casting Height l | 25.5mm |
| Bolt Hole Diameter s | 12mm |
| Back of Casting to Bearing Front z | 33.3mm |
| Bearing Insert Width Bi | 31mm |
| Back of Bearing to Centre Line n | 12.7mm |
| Working Temperature | -30°C to +120°C |
| Insert No | UC203 |
| Housing No | F203 |
