SKU: UCEHE210L3-SNR

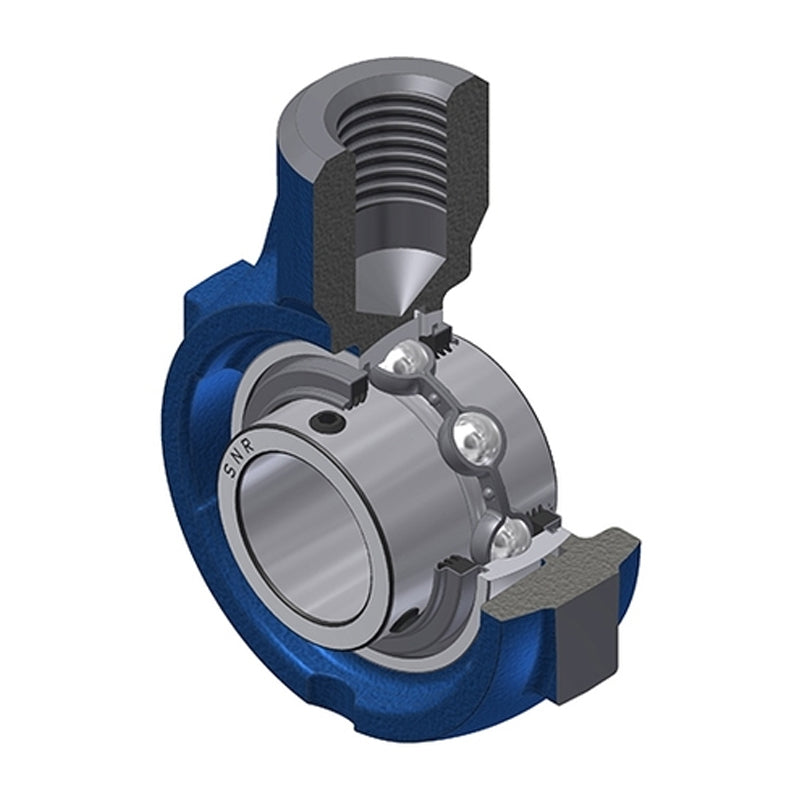

SNR UCEHE210L3 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
SNR UCEHE210L3 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
Regular price
Rs. 11,343.66
ex VAT
Regular price
Sale price
Rs. 11,343.66
ex VAT
In stock
Price Break
5+
Rs. 11,230.22
10+
Rs. 10,776.48
20+
Rs. 10,549.60
50+
Rs. 10,209.29
100+
Rs. 9,982.42
500+
Rs. 9,415.24
1000+
Rs. 7,940.56
Couldn't load pickup availability
Description
Description
UCEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCEHE
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 40mm |
| A2 | 40mm |
| B | 51.6mm |
| E | 24mm |
| H | 110mm |
| L | 145mm |
| L1 | 90mm |
| L3 | 46mm |
| S | 19mm |
| G | R1/8″ |
| G1 | M24 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.8 kg |
