SKU: UCEHE210-SNR
SNR UCEHE210 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert - Allow 2-3 Days
SNR UCEHE210 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 7,012.87
Regular price
Sale price
Rs. 7,012.87
Taxes included.
In stock
Price Break
10+
Rs. 6,241.45
19+
Rs. 5,890.81
29+
Rs. 5,820.68
39+
Rs. 5,750.55
49+
Rs. 5,680.42
74+
Rs. 5,610.30
99+
Rs. 5,259.65
199+
Rs. 5,189.52
249+
Rs. 5,119.40
499+
Rs. 5,049.27
999+
Rs. 4,909.01
Description
Description

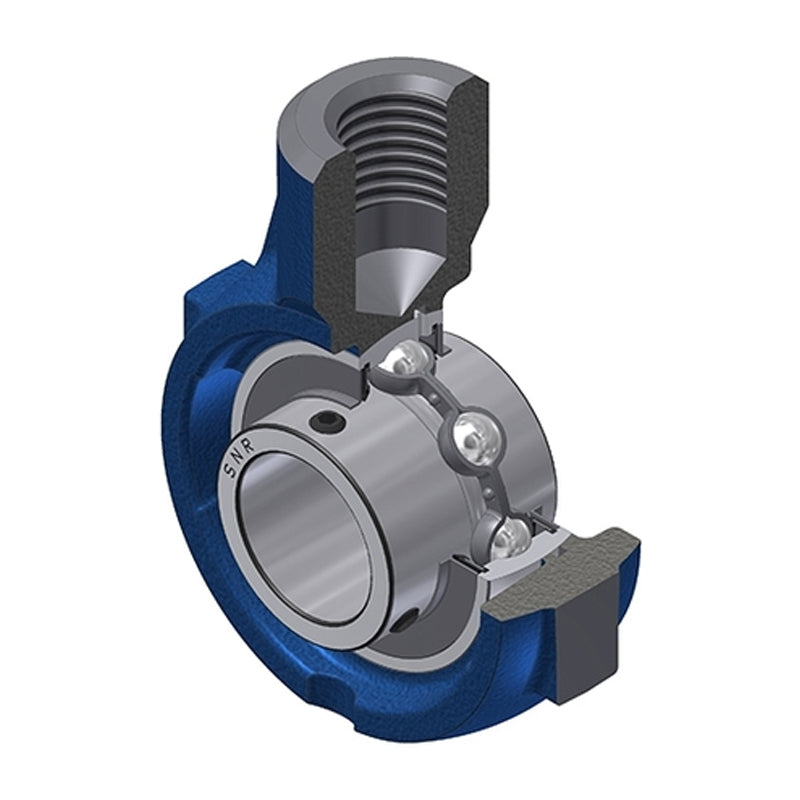

UCEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCEHE
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 40mm |
| A2 | 40mm |
| B | 51.6mm |
| E | 24mm |
| H | 110mm |
| L | 145mm |
| L1 | 90mm |
| L3 | 46mm |
| S | 19mm |
| G | R1/8″ |
| G1 | M24 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.8 kg |
