SKU: UCEHE208-SNR

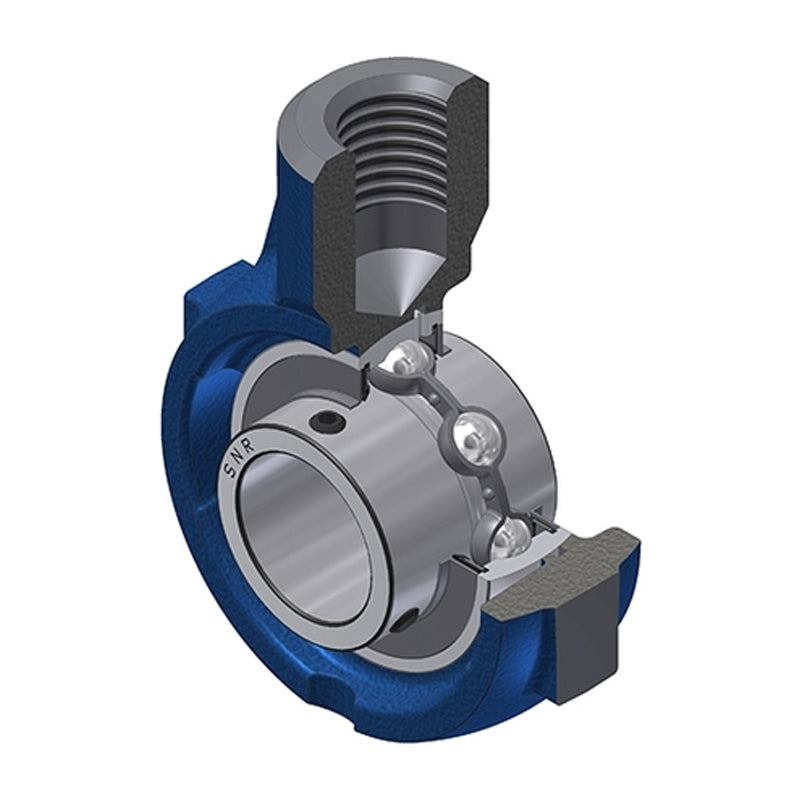

SNR UCEHE208 Metric Cast Iron Hanger Bearing Unit with 40mm Bore Insert - Allow 2-3 Days
SNR UCEHE208 Metric Cast Iron Hanger Bearing Unit with 40mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 6,170.50
Regular price
Sale price
Rs. 6,170.50
Taxes included.
In stock
Price Break
10+
Rs. 5,491.75
19+
Rs. 5,183.22
29+
Rs. 5,121.52
39+
Rs. 5,059.81
49+
Rs. 4,998.11
74+
Rs. 4,936.40
99+
Rs. 4,627.88
199+
Rs. 4,566.17
249+
Rs. 4,504.47
499+
Rs. 4,442.76
999+
Rs. 4,319.35
Description
Description
UCEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCEHE
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 36mm |
| A2 | 40mm |
| B | 49.2mm |
| E | 24mm |
| H | 100mm |
| L | 135mm |
| L1 | 85mm |
| L3 | 45mm |
| S | 19mm |
| G | R1/8″ |
| G1 | M24 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.54 kg |
