SKU: UCEHE205-SNR

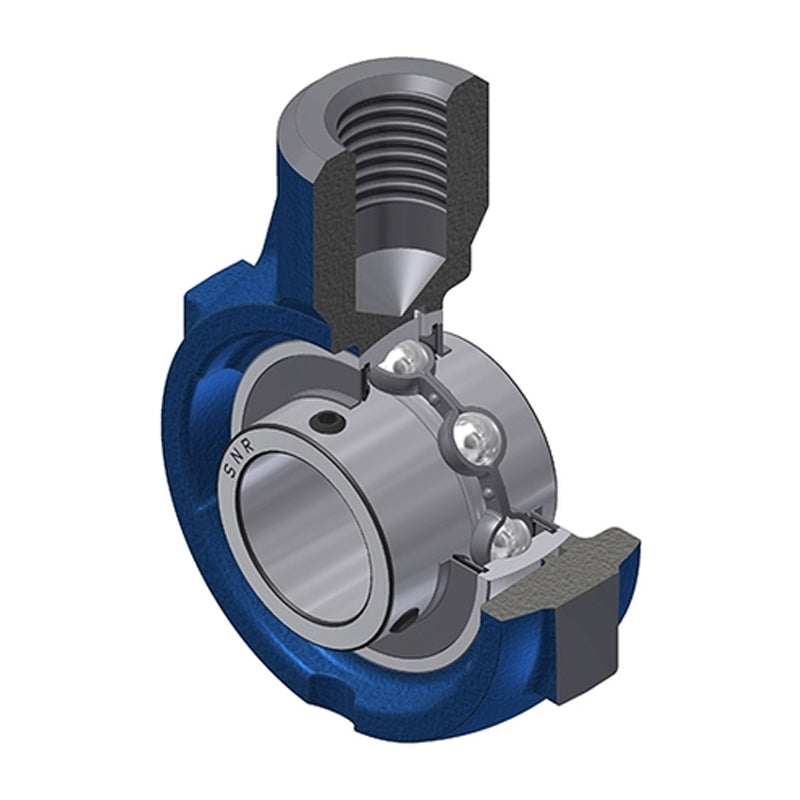

SNR UCEHE205 Metric Cast Iron Hanger Bearing Unit with 25mm Bore Insert - Allow 2-3 Days
SNR UCEHE205 Metric Cast Iron Hanger Bearing Unit with 25mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 4,535.70
Regular price
Sale price
Rs. 4,535.70
Taxes included.
In stock
Price Break
5+
Rs. 4,490.34
10+
Rs. 4,308.92
20+
Rs. 4,218.20
50+
Rs. 4,082.13
100+
Rs. 3,991.42
500+
Rs. 3,764.63
1000+
Rs. 3,174.99
Description
Description
UCEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCEHE
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| A | 28mm |
| A2 | 35mm |
| B | 34mm |
| E | 22mm |
| H | 70mm |
| L | 99mm |
| L1 | 64mm |
| L3 | 38mm |
| S | 14.3mm |
| G | R1/8″ |
| G1 | M20 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.71 kg |
