SKU: UCC322-SNR
SNR UCC322 Metric Cast Iron Cartridge Unit with 110mm Bore Insert 80mm Outside Dia - Allow 2-3 Days
SNR UCC322 Metric Cast Iron Cartridge Unit with 110mm Bore Insert 80mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 90,214.83
Regular price
Sale price
Rs. 90,214.83
Taxes included.
In stock
Price Break
2+
Rs. 85,704.09
5+
Rs. 81,193.35
10+
Rs. 76,682.61
15+
Rs. 72,171.86
20+
Rs. 70,367.57
30+
Rs. 68,563.27
50+
Rs. 59,541.79
Description
Description

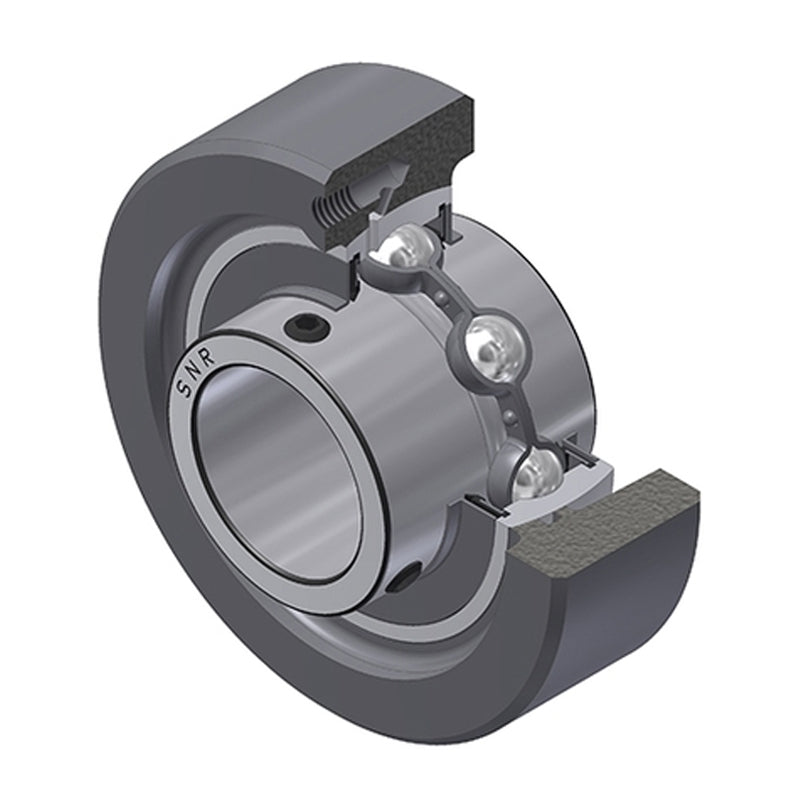

UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 110mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 110mm |
| A | 80mm |
| A3 | 3.5mm |
| B | 117mm |
| H | 300mm |
| S | 46mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 205 kN |
| Static load C0 | 178 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 28.8 kg |
