SKU: UCC321-SNR

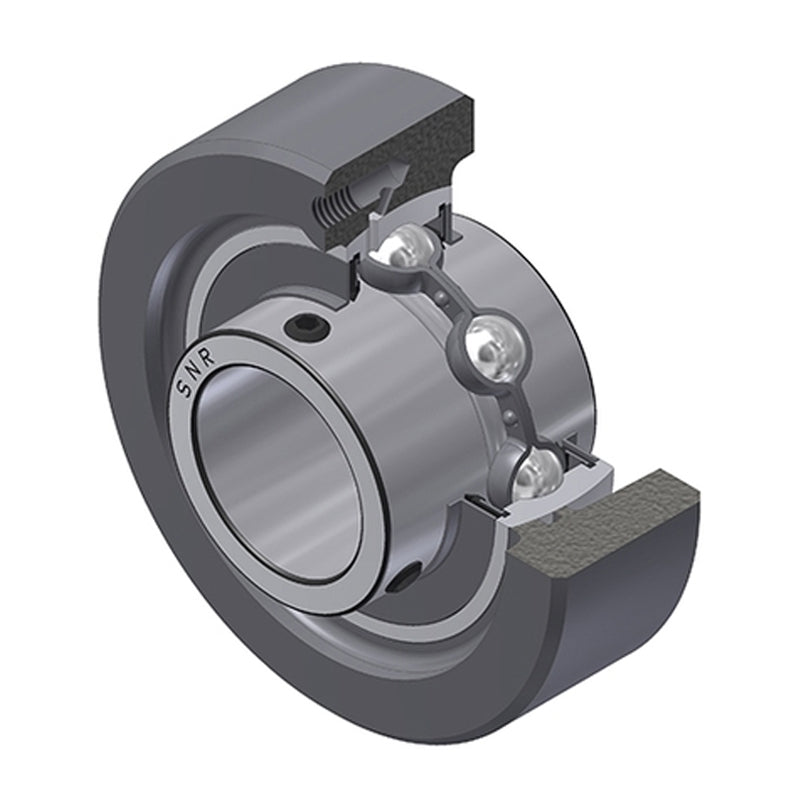

SNR UCC321 Metric Cast Iron Cartridge Unit with 105mm Bore Insert 75mm Outside Dia - Allow 2-3 Days
SNR UCC321 Metric Cast Iron Cartridge Unit with 105mm Bore Insert 75mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 83,748.60
Regular price
Sale price
Rs. 83,748.60
Taxes included.
In stock
Price Break
2+
Rs. 79,561.17
5+
Rs. 75,373.74
10+
Rs. 71,186.31
15+
Rs. 66,998.88
20+
Rs. 65,323.91
30+
Rs. 63,648.94
50+
Rs. 55,274.08
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 105mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 105mm |
| A | 75mm |
| A3 | 3mm |
| B | 112mm |
| H | 260mm |
| S | 44mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 182 kN |
| Static load C0 | 155 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 19.4 kg |
