SKU: UCC318-SNR

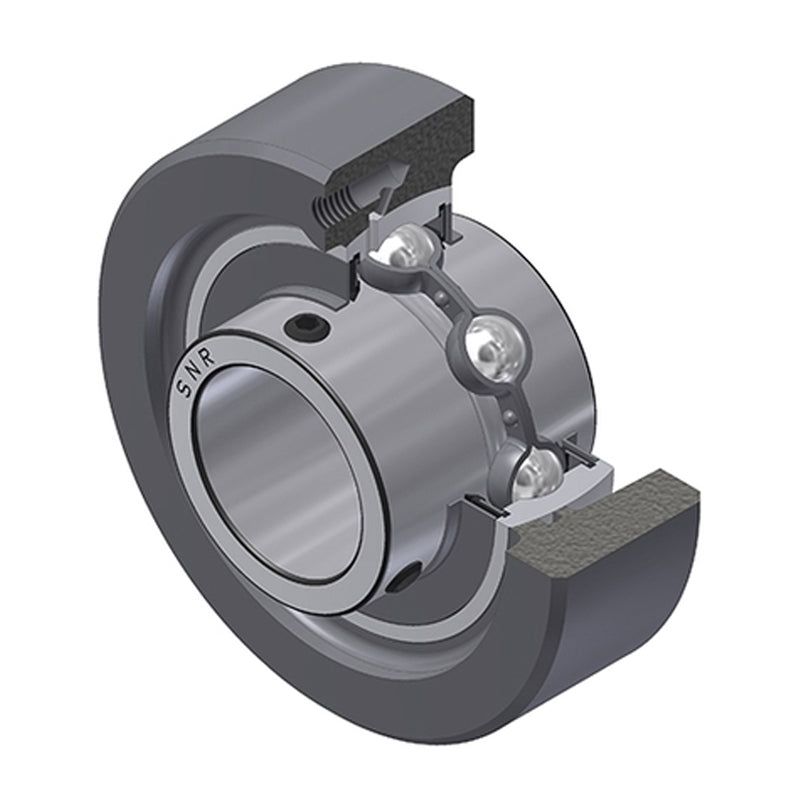

SNR UCC318 Metric Cast Iron Cartridge Unit with 90mm Bore Insert 66mm Outside Dia - Allow 2-3 Days
SNR UCC318 Metric Cast Iron Cartridge Unit with 90mm Bore Insert 66mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 56,750.72
Regular price
Sale price
Rs. 56,750.72
Taxes included.
In stock
Price Break
5+
Rs. 56,183.21
10+
Rs. 53,913.18
20+
Rs. 52,778.17
50+
Rs. 51,075.65
100+
Rs. 49,940.63
500+
Rs. 47,103.10
1000+
Rs. 39,725.50
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 90mm |
| A | 66mm |
| A3 | 3mm |
| B | 96mm |
| H | 225mm |
| S | 40mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 143 kN |
| Static load C0 | 108 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 13.17 kg |
