SKU: UCC316D1-NTN

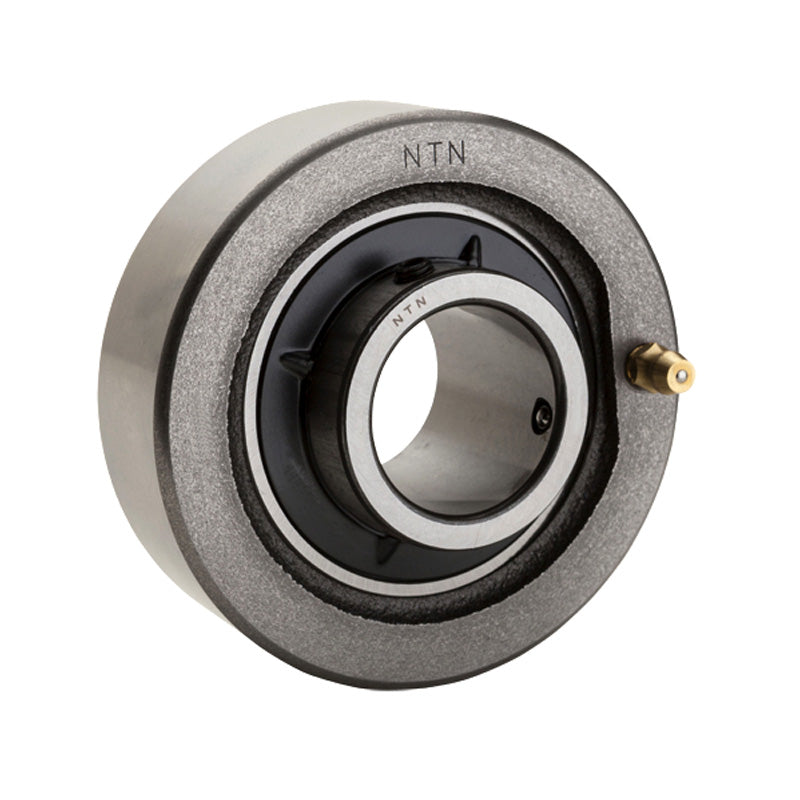

NTN UCC316D1 Metric Cast Iron Cartridge Unit with 80mm Bore Insert 200mm Outside Dia - Allow 2-3 Days
NTN UCC316D1 Metric Cast Iron Cartridge Unit with 80mm Bore Insert 200mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 42,570.08
Regular price
Sale price
Rs. 42,570.08
Taxes included.
In stock
Price Break
5+
Rs. 42,144.38
10+
Rs. 40,441.58
20+
Rs. 39,590.17
50+
Rs. 38,313.07
100+
Rs. 37,461.67
500+
Rs. 35,333.17
1000+
Rs. 29,799.06
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCC
Technical
Technical
| Shaft diameter | 80mm |
|---|---|
| H | 200mm |
| A | 60mm |
| r | 4mm |
| B | 86mm |
| S | 34mm |
| Mass | 9.3 kg |
