SKU: UCC316-SNR

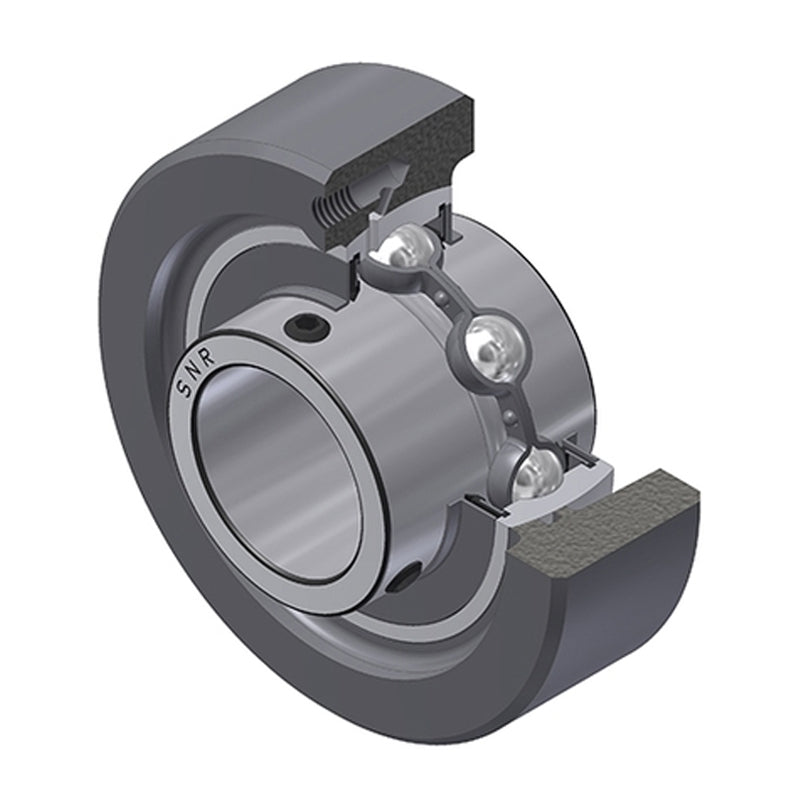

SNR UCC316 Metric Cast Iron Cartridge Unit with 80mm Bore Insert 60mm Outside Dia - Allow 2-3 Days
SNR UCC316 Metric Cast Iron Cartridge Unit with 80mm Bore Insert 60mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 63,851.92
Regular price
Sale price
Rs. 63,851.92
Taxes included.
In stock
Price Break
5+
Rs. 63,213.40
10+
Rs. 60,659.32
20+
Rs. 59,382.29
50+
Rs. 57,466.73
100+
Rs. 56,189.69
500+
Rs. 52,997.09
1000+
Rs. 44,696.34
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 80mm |
| A | 60mm |
| A3 | 2.5mm |
| B | 86mm |
| H | 200mm |
| S | 34mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 122.85 kN |
| Static load C0 | 86.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 9.17 kg |
