SKU: UCC313-SNR

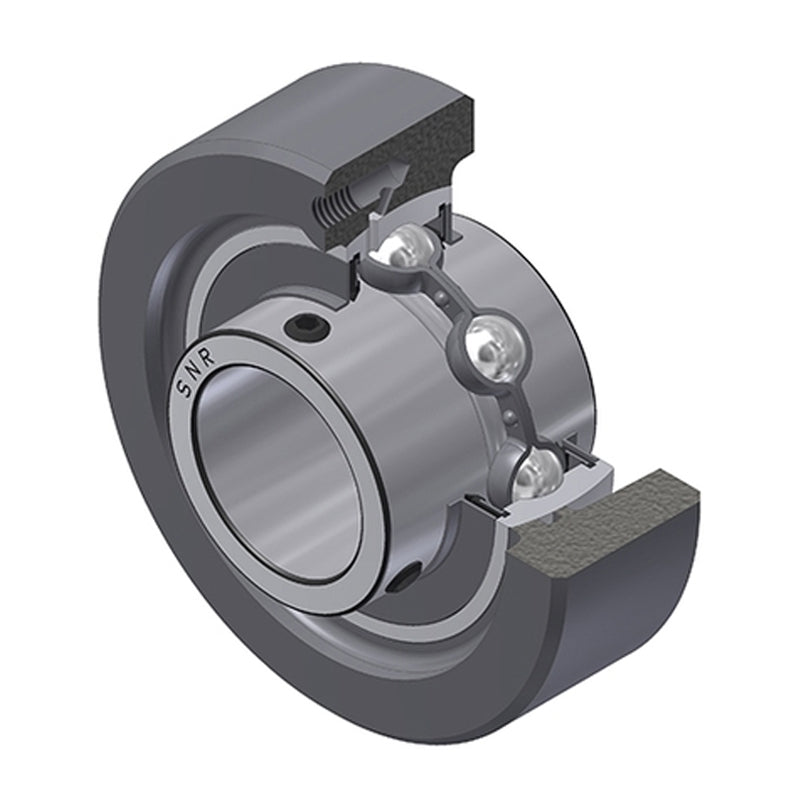

SNR UCC313 Metric Cast Iron Cartridge Unit with 65mm Bore Insert 50mm Outside Dia - Allow 2-3 Days
SNR UCC313 Metric Cast Iron Cartridge Unit with 65mm Bore Insert 50mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 17,893.18
Regular price
Sale price
Rs. 17,893.18
Taxes included.
In stock
Price Break
10+
Rs. 15,924.93
19+
Rs. 15,030.27
29+
Rs. 14,851.34
39+
Rs. 14,672.41
49+
Rs. 14,493.48
74+
Rs. 14,314.54
99+
Rs. 13,419.89
199+
Rs. 13,240.95
249+
Rs. 13,062.02
499+
Rs. 12,883.09
999+
Rs. 12,525.23
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 65mm |
| A | 50mm |
| A3 | 2.5mm |
| B | 75mm |
| H | 170mm |
| S | 30mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 93.86 kN |
| Static load C0 | 60.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 5.85 kg |
