SKU: UCC312-SNR
SNR UCC312 Metric Cast Iron Cartridge Unit with 60mm Bore Insert 46mm Outside Dia - Allow 2-3 Days
SNR UCC312 Metric Cast Iron Cartridge Unit with 60mm Bore Insert 46mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 22,700.29
Regular price
Sale price
Rs. 22,700.29
Taxes included.
In stock
Price Break
5+
Rs. 22,473.29
10+
Rs. 21,565.28
20+
Rs. 21,111.27
50+
Rs. 20,430.26
100+
Rs. 19,976.26
500+
Rs. 18,841.24
1000+
Rs. 15,890.20
Description
Description

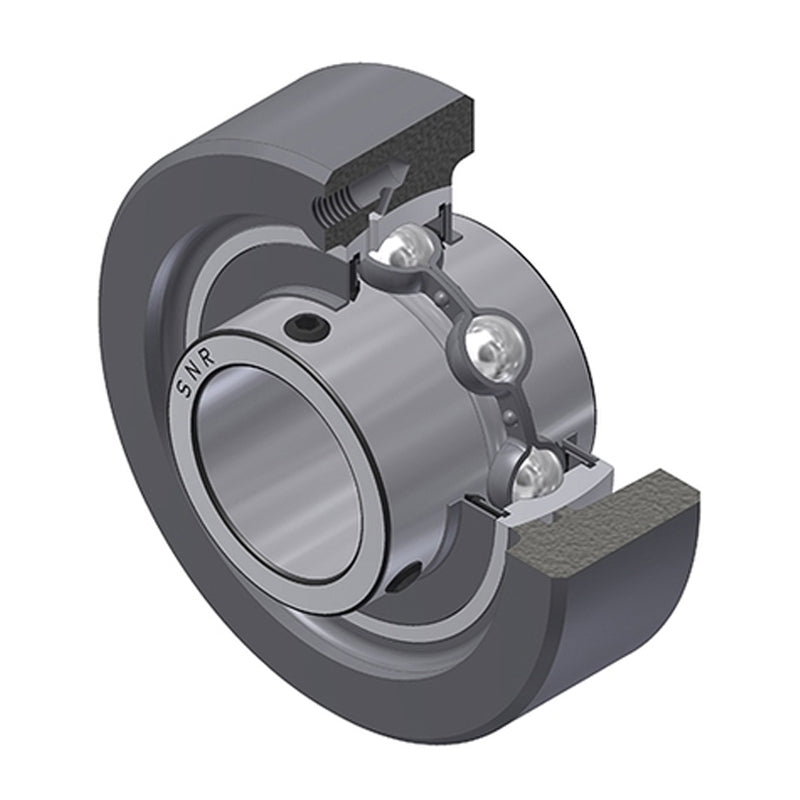

UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 46mm |
| A3 | 2.5mm |
| B | 71mm |
| H | 160mm |
| S | 26mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 81.6 kN |
| Static load C0 | 51.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 4.8 kg |
