SKU: UCC310D1-NTN

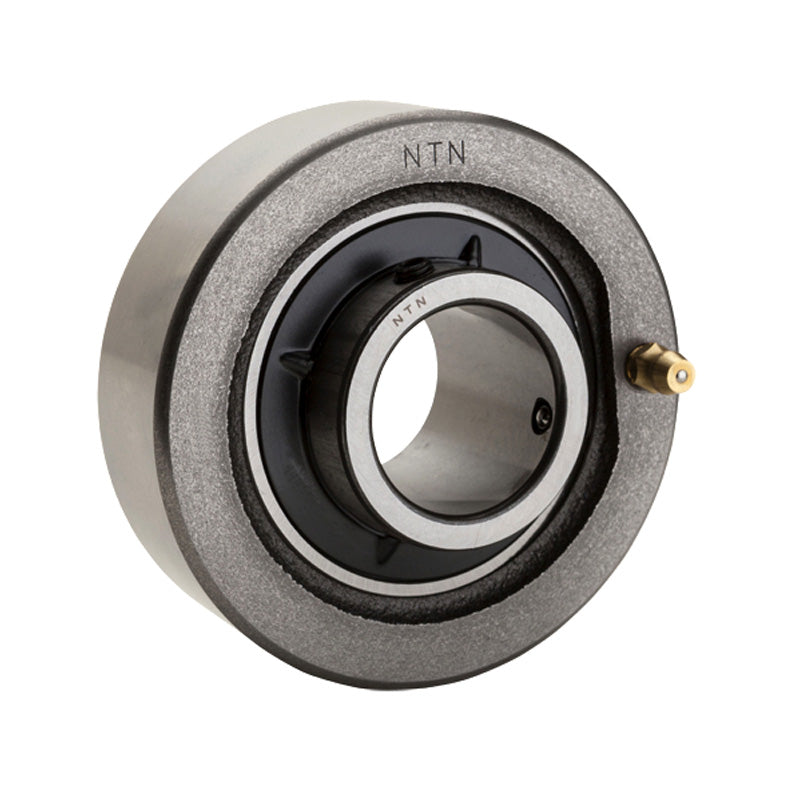

NTN UCC310D1 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 140mm Outside Dia - Allow 2-3 Days
NTN UCC310D1 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 140mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 10,590.99
Regular price
Sale price
Rs. 10,590.99
Taxes included.
In stock
Price Break
10+
Rs. 9,425.98
19+
Rs. 8,896.43
29+
Rs. 8,790.52
39+
Rs. 8,684.61
49+
Rs. 8,578.70
74+
Rs. 8,472.79
99+
Rs. 7,943.24
199+
Rs. 7,837.33
249+
Rs. 7,731.42
499+
Rs. 7,625.51
999+
Rs. 7,413.69
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCC
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| H | 140mm |
| A | 40mm |
| r | 3.5mm |
| B | 61mm |
| S | 22mm |
| Mass | 3.3 kg |
