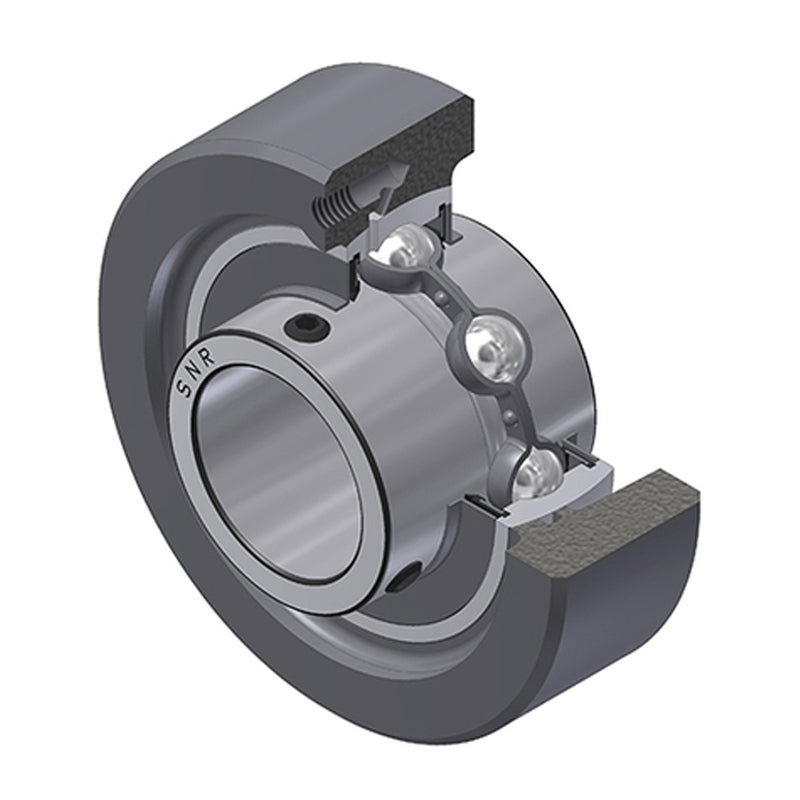

SNR UCC309 Metric Cast Iron Cartridge Unit with 45mm Bore Insert 38mm Outside Dia - Allow 2-3 Days
SNR UCC309 Metric Cast Iron Cartridge Unit with 45mm Bore Insert 38mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 11,352.70
Regular price
Sale price
Rs. 11,352.70
Taxes included.
In stock
Price Break
5+
Rs. 11,239.17
10+
Rs. 10,785.07
20+
Rs. 10,558.01
50+
Rs. 10,217.43
100+
Rs. 9,990.38
500+
Rs. 9,422.74
1000+
Rs. 7,946.89
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 38mm |
| A3 | 2.5mm |
| B | 57mm |
| H | 130mm |
| S | 22mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 53 kN |
| Static load C0 | 31.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.68 kg |
