SKU: UCC308-SNR
SNR UCC308 Metric Cast Iron Cartridge Unit with 40mm Bore Insert 34mm Outside Dia - Allow 2-3 Days
SNR UCC308 Metric Cast Iron Cartridge Unit with 40mm Bore Insert 34mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 9,931.70
Regular price
Sale price
Rs. 9,931.70
Taxes included.
In stock
Price Break
5+
Rs. 9,832.38
10+
Rs. 9,435.12
20+
Rs. 9,236.48
50+
Rs. 8,938.53
100+
Rs. 8,739.90
500+
Rs. 8,243.31
1000+
Rs. 6,952.19
Description
Description

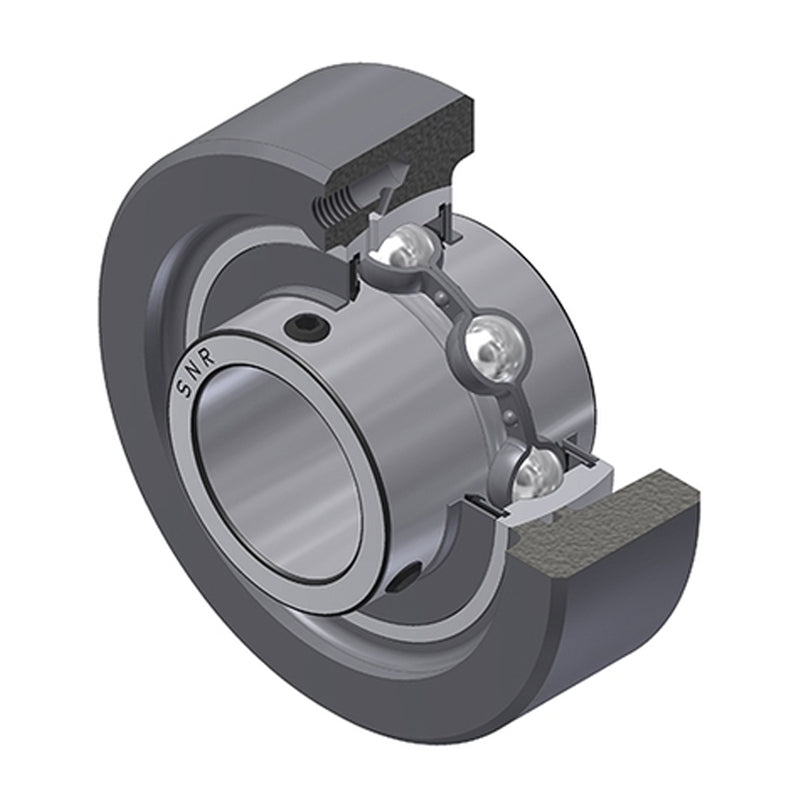

UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 34mm |
| A3 | 2mm |
| B | 52mm |
| H | 120mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 40.56 kN |
| Static load C0 | 24 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.16 kg |
